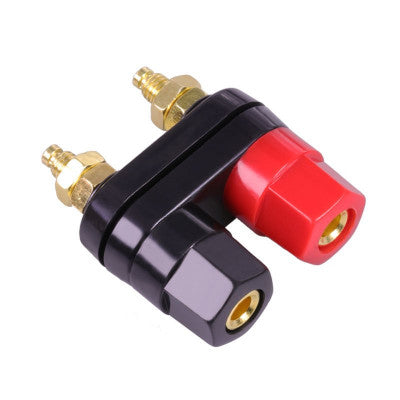

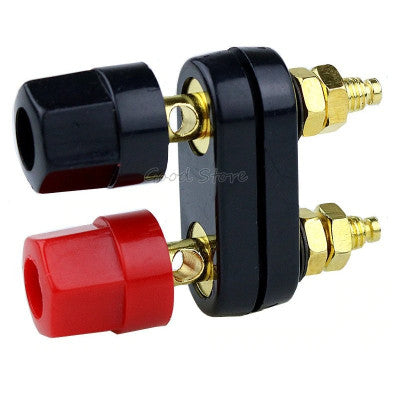

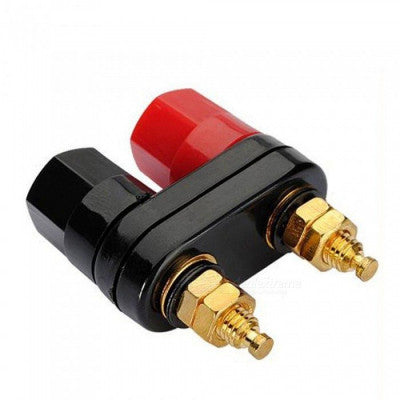

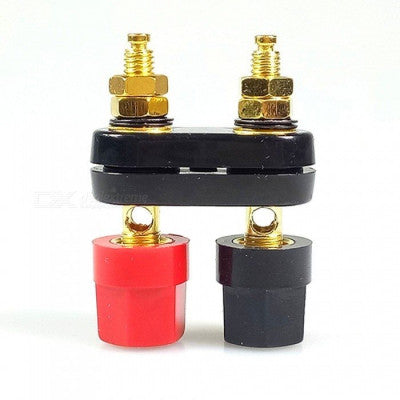

Banana Plugs Couple Terminals Red Black Connector Amplifier Terminal
A standard dual binding post for chassis mounting with various connector compatibility
- Terminal Body: Copper
- Material: Metal and plastic

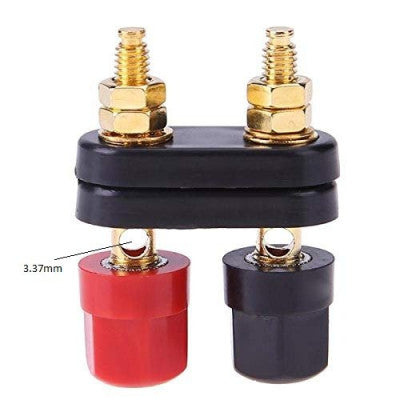

- Pin Hole Diameter (mm): 3.37
- Outer Diameter (mm): 4

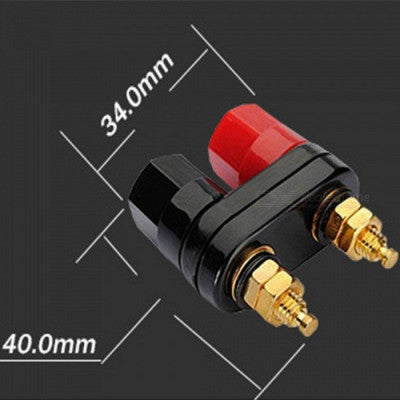

- Length (mm): 40
- Width (mm): 35
- Height (mm): 16
- Weight (gm): 22
Top Features:
- Accommodates standard dual banana plugs
- Compatible with up to 16 gauge wire
- Supports high current spade connectors up to 5 mm high
- No soldering required with screws for wire holding
The Banana Plugs Couple Terminals Red Black Connector Amplifier Terminal is a standard dual binding post designed for chassis mounting. It can handle various connectors, including standard dual banana plugs and high current spade connectors up to 5 mm high. The unit features front and rear chassis insulators with a lip to keep conductors centered and prevent contact with the chassis. With two 0.5 holes drilled in the center, it is suitable for chassis up to 0.25 thick. The terminal is made of high-temperature high impact injection molded plastic and comes with gold plated terminals for long-lasting use. The color-coded insulation jackets provide easy recognition.
Ideal for audio-video and amplifier applications, this package includes 1 x Banana Plugs Couple Terminals Red Black Connector Amplifier Terminal.
Images are for illustration only; actual product may vary.
