B1512S-1WR2 Series
Designed for distributed power supply systems with high efficiency and continuous short-circuit protection.
- Input Voltage Range: 13.5-16.5
- Nominal Voltage: 15Vdc
- Output Voltage: 12V
- Output Current: 84/9(mA)
- Wattage: 1W
- Isolation: 1.5kVdc
- Package: SIP
Features:
- Continuous short-circuit protection
- High efficiency up to 80%
- Operating ambient temperature -40°C to +105°C
- Compact SIP/DIP package
The B1512S-1WR2 series is ideal for pure digital circuits, low frequency analog circuits, relay-driven circuits, and data switching circuits. It is suitable for applications where the input power supply voltage is relatively stable with a variation of ±10%Vin or less, and an input to output isolation voltage of up to 1500VDC is necessary. The requirement for tight output regulation and low ripple & noise is not as strict.
Package Includes:

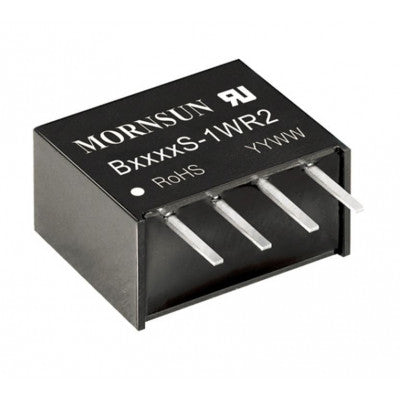

- 1 x B1512S-1WR2 Mornsun 15V to 12V DC-DC Converter 1W Power Supply Module - Compact SIP/DIP Package
Images are for illustration only; actual product may vary.
