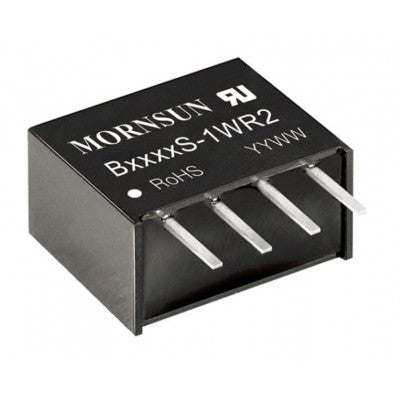

B1224S-1WR2 Mornsun 12V to 24V DC-DC Converter 1W Power Supply Module
Designed for distributed power supply systems with high efficiency and industry standard pin-out.
- I/p Voltage range: 10.8-13.2
- Nominal voltage: 12Vdc
- O/p voltage: 24V
- O/p current: 42/4(mA)
- Wattage: 1W
- Isolation: 1.5kVdc
- Package: SIP
Features:
- Continuous short-circuit protection
- High efficiency up to 80%
- Operating ambient temperature -40°C to +105°C
- Compact SIP/DIP package
The B1224S-1WR2 series is designed for use in distributed power supply systems and is especially suitable for applications such as pure digital circuits, low-frequency analog circuits, relay-driven circuits, and data switching circuits. It is ideal where the input power supply voltage is relatively stable with a variation of ±10%Vin or less, an input to output isolation voltage of up to 1500VDC is necessary, and the requirement for tight output regulation and low ripple & noise is not as strict.
Package Includes:
1 x B1224S-1WR2 Mornsun 12V to 24V DC-DC Converter 1W Power Supply Module - Compact SIP/DIP Package
* Images are for illustration only; actual product may vary.
