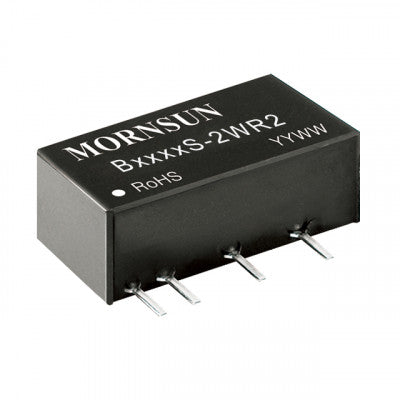

B1205S-2WR2 Mornsun 12V to 5V DC-DC Converter 2W Power Supply Module
Designed for distributed power supply systems with high efficiency and compact design.
- Model Number: B1205S-2WR2
- Input Voltage range: 10.8-13.2 Vdc
- Nominal voltage: 12 Vdc
- Output voltage: 5V
- Output current: 400/40(mA)
- Wattage: 2W
- Isolation Voltage: 1.5 kVdc
- Package: Miniature SIP
- Size: 19.65mm (Length) X 7.05mm (Width) X 10.16mm (Height)
- Weight: 2.4gm
Features:
- Meets UL, CE, CB requirements
- High power density
- High efficiency up to 86%
- Operating ambient temperature range: -40°C to +105°C
This Mornsun 12V to 5V DC-DC Converter 2W Power Supply Module is ideal for pure digital circuits, low frequency analog circuits, relay-driven circuits, and data switching circuits. It is equipped with a compact Miniature SIP package and offers high efficiency with an operating temperature range of -40°C to +105°C.
No external components are required for installation, and it features an industry-standard pin-out for easy integration. The I/O isolation test voltage is 1.5k VDC, and it is approved by IEC60950/UL60950/EN60950 standards.
Package Includes:
- 1 x B1205S-2WR2 Mornsun 12V to 5V DC-DC Converter 2W Power Supply Module - Miniature SIP Package
