B1205S-1WR2 Mornsun 12V to 5V DC-DC Converter 1W Power Supply Module
Designed for distributed power supply systems with high efficiency and compact design.
- Model Number: B1205S-1WR2
- Input Voltage range: 10.8-13.2 Vdc
- Nominal voltage: 12 Vdc
- Output voltage: 5V
- Output current: 200/20(mA)
- Wattage: 1W
- Isolation Voltage: 1.5 kVdc
- Package: Compact SIP
- Size: 11.60mm (Length) X 6.00mm (Width) X 10.16mm (Height)
- Weight: 1.3gm
Features:
- Meets UL, CE requirements
- Continuous short-circuit protection
- High efficiency up to 80%
- Operating ambient temperature -40°C to +105°C
This Mornsun 12V to 5V DC-DC Converter 1W Power Supply Module is designed for use in distributed power supply systems. It is especially suitable for applications such as pure digital circuits, low frequency analog circuits, relay-driven circuits, and data switching circuits. The module is equipped with numerous features, including a Compact SIP package, high efficiency, and an operating temperature of -40°C to +105°C.
The module is designed for scenarios where the input power supply voltage is relatively stable with a variation of ±10%Vin or less, an input to output isolation voltage of up to 1500VDC is necessary, and the requirement for tight output regulation and low ripple & noise is not as strict.
Package Includes:

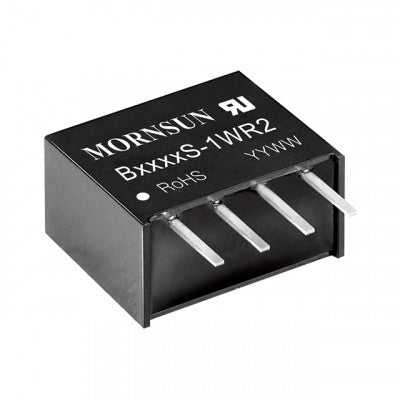

1 x B1205S-1WR2 Mornsun 12V to 5V DC-DC Converter 1W Power Supply Module - Compact SIP Package
Related Documents: Mornsun B1205S-1WR2 Datasheet
* Images are for illustration only; actual product may vary.
