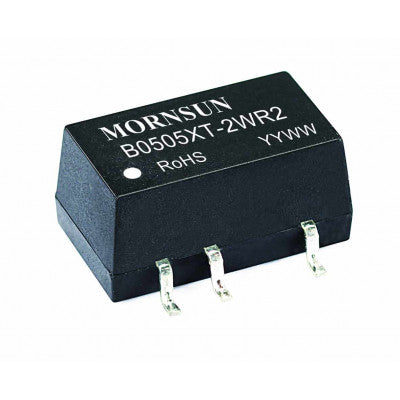

B0505S-2WR2 Mornsun 5V to 5V DC-DC Converter 2W Power Supply Module
Designed for distributed power supply systems with high efficiency and compact design.
- Model Number: B0505XT-2WR2
- Input Voltage range: 4.5-5.5 Vdc
- Nominal voltage: 5 Vdc
- Output voltage: 5V
- Output current: 400/40(mA)
- Wattage: 2W
- Isolation Voltage: 1.5 kVdc
- Package: Compact SMD
- Size: 12.7mm (Length) X 11.20mm (Width) X 7.25mm (Height)
- Weight: 1.6gm
Features:
- Meet CE requirements
- Operating ambient temperature range: -40°C to +105°C
- High efficiency up to 84%
- Compact SMD package
This Mornsun 5V to 5V DC-DC Converter 2W Power Supply Module is ideal for use in distributed power supply systems. It is especially suitable for applications such as pure digital circuits, low frequency analog circuits, noise and interference cancelling circuits, relay-driven circuits, and data switching circuits. The module is designed to work with input power supplies with a relatively stable voltage variation of ±10%Vin or less. It provides an input to output isolation voltage of up to 1500VDC and does not require external components. The internal surface mount design and industry standard pin-out make it easy to integrate into various systems.
Equipped with a compact SMD package, this module offers high efficiency and operates within a wide temperature range of -40°C to +105°C. It meets EN60950 approval standards and is designed to deliver reliable performance in demanding environments.
Package Includes:
- 1 x B0505XT-2WR2 Mornsun 5V to 5V DC-DC Converter 2W Power Supply Module Compact SMD Package
Related Documents: Mornsun B0505XT-2WR2 Datasheet
Images are for illustration only; actual product may vary.
