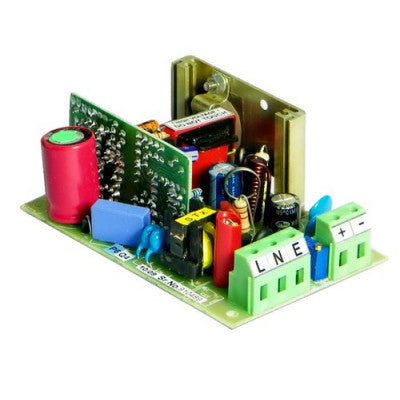

AS348-115 Open Frame Power Supply
Efficient open frame power supply for consumer, industrial, and ITE applications
- Output Voltage: 24V
- Output Current: 1A
- Type: Open Frame SMPS
- Wattage: 24W
- Input Voltage: 180 - 270VAC ; 200 - 360VDC
- Warranty: 1 Year
- IP Level: Non-Waterproof
Features:
- Single Phase Input
- Built In Transient protector & EMI filter
- Short circuit, overload, overvoltage protection
- Low ripple & noise
AS348-115 open frame power supplies are designed to meet the delivering higher efficiency and improved no-load performance. Featuring industry standard footprints, the VOF's efficient design makes these power supplies the ideal solution for a range of consumer, industrial, and ITE applications.
Detailed Specifications:
- Isolation Input – Output: 1.5KVAC, 1 minute
- Isolation Input – Earth: 1.5KVAC, 1 minute
- Isolation Output – Earth: 0.5KVAC, 1 minute
- Efficiency: 70 - 75%
- Output voltage adjustment: +/- 10% of nominal output voltage
- Overload protection: 105% - 130% of rated load
- Line & load regulation: Better than 0.5%
- Hold up time: > 20ms at rated input voltage and load
Operating ambient: 0 - 50°C, 95% RH. Inrush current: 32A @230VAC; 23A @230VDC. Safety standard: Design refers to EN60950-1. EMC standard: Design refers to EN55022, EN55024. Terminations: Screw type, for 2.5mm sq. wire. Mounting: Screw / Din rail Mounting. Ripple & noise: < 120mV. Overvoltage protection: < 16V. Dimension (W X H X D): 40 x 55 x 100 mm. Weight: 158 gm.
* Images are for illustration only; actual product may vary.
