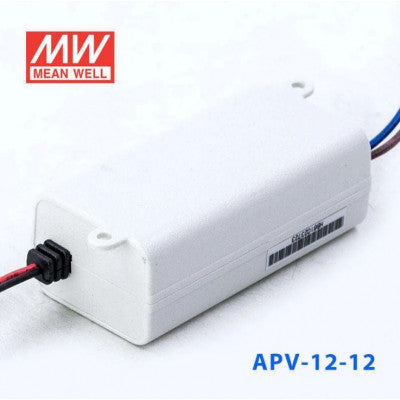

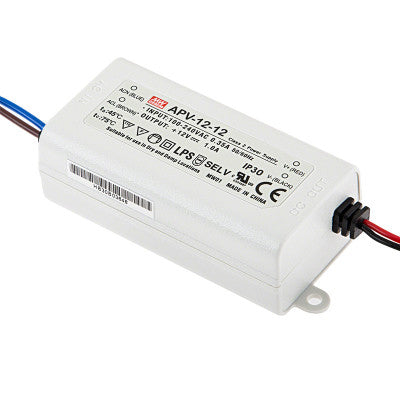

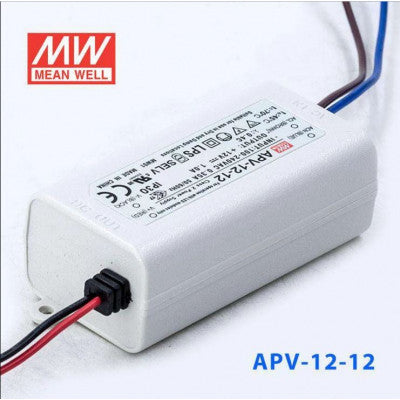

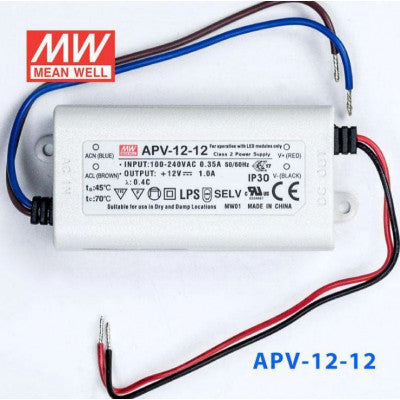

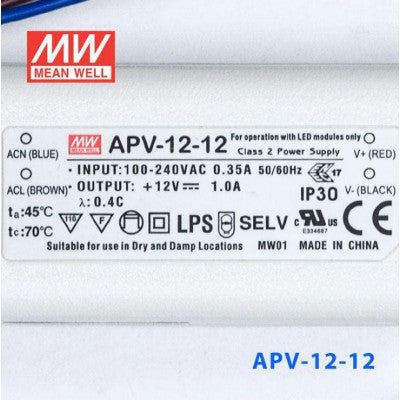

12W LED Waterproof Power Supply
Universal AC input, full range, with 2 years warranty
- Output Voltage: 12V
- Type: LED & Waterproof
- Approx. Wattage: 12W
- Features: Standard Series APV (Economical)
- Mechanical Form: Plastic
- Warranty: 2 Years Warranty
- IP Level: IP42
- Input Voltage: 100-240V auto-select
Top Features:
- Fully isolated plastic case
- Short circuit, overload, and overvoltage protections
- Constant voltage design in C.V. mode
- Low cost, high reliability
The 12W LED Waterproof Power Supply is suitable for LED lighting and moving sign applications. It has a universal AC input with a full range and comes with a 2-year warranty. The power supply features a plastic case that is fully isolated and offers protections against short circuit, overload, and overvoltage. With a constant voltage design in C.V. mode, this power supply is a cost-effective and reliable solution for your lighting needs.
The power supply has an IP42 design and is classified as a Class 2 power unit with no F.G. It operates with cooling by free air convection and has undergone a 100% full load burn-in test for quality assurance. With an input voltage range of 100-240V auto-select, this power supply is versatile and efficient.
- AC Input Voltage Range: 90~264VAC ; 127~370VDC
- AC Inrush Current: Cold start, 70A at 230VAC
- Overload Range: >105% rated output current
- Protection Type: Hiccup up mode, auto-recovery
- Over Voltage Protection: 110%~145% rated output voltage
- Withstand Voltage: I/P-O/P: 3kVAC
- Working Temperature: -30~+70°C (refer to output derating curve)
- Vibration: 10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
The power supply meets safety standards such as UL8750 and design references IEC61347-1, IEC61347-2-13. It also complies with EMC standards including EN55015, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547. The input and output connections are UL rated, with 18AWGx2C for input and 20AWGx2C for output.
- Connection Input: UL rated, 18AWGx2C (15cm)
- Connection Output: UL rated, 20AWGx2C (15cm)
- Dimension (LxWxH): 77x 40x 29 mm
