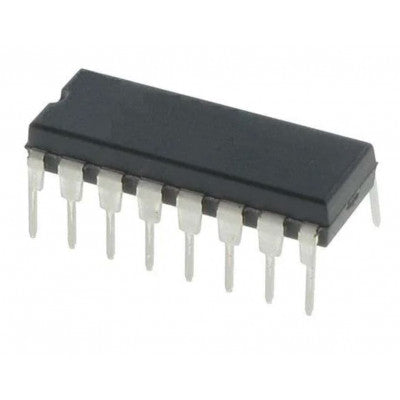

ADG201A CMOS Switches
Monolithic CMOS devices with four independently selectable switches.
- Supply Voltage: ±18 V
- Internal Power Dissipation: 500 mW
- Output Short-Circuit Duration: Indefinite
- Differential Input Voltage: ±16.5 V
- Lead Temperature: 300°C
- Storage Temperature Range: -65°C to +125°C
- Logic Supply Voltage: 7V
Features:
- 4V Supply Maximum Rating
- ±15V Analog Signal Range
- Low RON & Leakage (0.5nA)
- Break Before Make Switch
The ADG201A are designed on an enhanced LC2MOS process allowing for an increased signal handling capability of 15V. With high switching speed and low RON, they consist of four SPST switches with inverted digital control logic. The switches exhibit break before make switching fiction and low charge injection.
Related Document: ADG201A IC Data Sheet
- Symbol Parameter: Value Unit
- Ptot Power Dissipation: 500 mW
- Tj Maximum Junction Temperature: 175 °C
- TS Storage Temperature Range: -65 to +175 °C
- VF Forward Voltage: 1.1 Volts
Related Document: 5V Zener Diode - 500mW
