ADG512 CMOS Analog Switch IC
A monolithic CMOS IC containing four independently selectable analog switches
- Power Supplies: +3 V, +5 V, or ±5 V
- Power Dissipation: <0.5 W
- Leakage: <100 pA
- On Resistance: <50 Ohms
- Switching Times: Fast
- Charge Injection: Low
- Package: 16-Lead SOIC
Top Features:
- Operates from multiple power supplies
- Low power consumption
- Fast switching times
- Compatible with TTL/CMOS
The ADG512 is a monolithic CMOS IC with four independently selectable analog switches, featuring low on-resistance and a wide analog signal range. Utilizing Analog Devices’ LC2 MOS process, it offers low leakage currents, ultralow power dissipation, and fast switching speeds with minimal charge injection, making it ideal for precision analog signal switching applications.
With the ability to operate from single +3 V, +5 V, or ±5 V supplies, the ADG512 is suitable for battery-operated instruments, 4–20 mA loop systems, and new-generation DACs and ADCs from Analog Devices. Its compatibility with 5 V supplies and reduced operating currents result in significantly lower power dissipation compared to devices requiring ±15 V supplies.
Applications:
- Battery-Powered Instruments
- Single Supply Systems
- Remote Powered Equipment
- Computer Peripherals including Disk Drives
- Precision Instrumentation
- Audio and Video Switching
- Automatic Test Equipment
- Precision Data Acquisition
- Sample Hold Systems
- Communication Systems
Compatible with 5 V Supply DACs and ADCs such as AD7840, AD7848, AD7870, AD7871, AD7872, AD7874, AD7875, AD7876, AD7878.

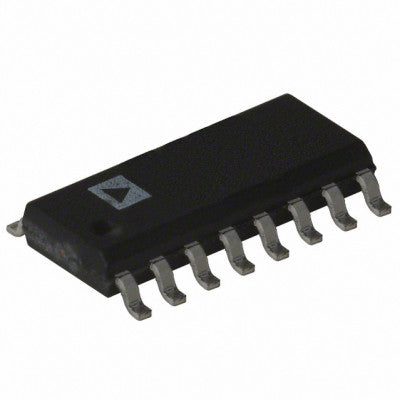

Images are for illustration only; actual product may vary.
