AD736 Precision True RMS-to-DC Converter
A low-power, precision converter for accurate measurement of input waveforms
- Spec name: AD736 Precision True RMS-to-DC Converter
- Maximum Error: ±0.3 mV ± 0.3% of reading with sine wave inputs
- RMS Value: Computes both AC and DC input voltages
- Power Supply Current: 200 µA
- Input Impedance: 1012 ?
- Input Voltage Level: 300 mV rms
- Temperature Ranges: 0°C to +70°C, ?20°C to +85°C, ?40°C to +85°C
- Available Packages: PDIP, SOIC, CERDIP
Top Features:
- Converts AC voltage to DC voltage with true RMS, average rectified, or absolute value
- High input impedance of 1012 ?
- Accuracy of ±0.3 mV ± 0.3% of reading
- RMS conversion with signal crest factors up to 5
The AD736 is equipped to handle a wide range of input waveforms, including variable duty-cycle pulses and triac-controlled sine waves. Its compact size and affordability make it an ideal choice for various applications requiring precision rectifiers.
With an external capacitor, the AD736 can operate as an AC-coupled device, ensuring high accuracy even at low input signal levels. The integrated output buffer amplifier provides design flexibility while consuming only 200 µA of power supply current.
The AD736 offers four performance grades to suit different temperature ranges and is available in cost-effective 8-lead packages such as PDIP, SOIC, and CERDIP.
Interested or need bulk pricing? Contact our sales team: sales02@thansiv.com | +91-8095406416

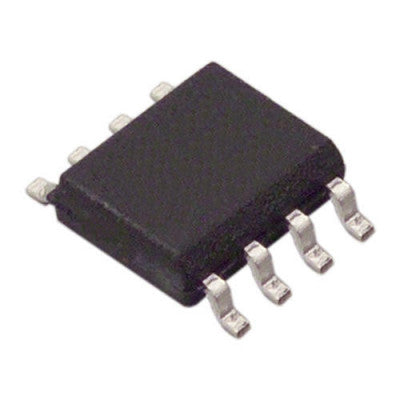

*Images are for illustration only; actual product may vary.
