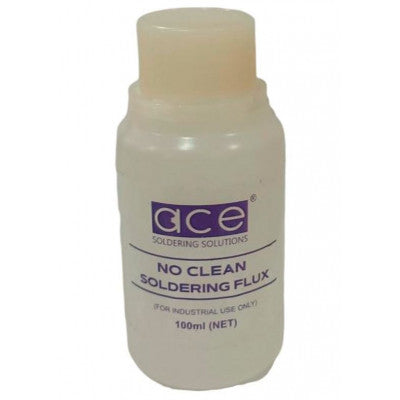

ACE 100ml No Clean Soldering Liquid Flux
Designed for improved effectiveness in dip and wave soldering of PCB assemblies.
- Specific Gravity: 0.82±0.005
- Percent solids (theoretical): 1.5
- State: Liquid
- Acid number: 35.0mg KOH/g
- Volume: 100ml
Top Features:
- Improves effectiveness in soldering
- Non-corrosive and non-conductive residues
- Flammable - store in a cool, dry place
- Can be applied manually or via spraying
Process Considerations: The flux needs to be pre-heated post application to activate it. Recommended temperature ranges between 90°C to 150°C (194°F to 302°F) depending on various factors.
Cleaning: Flux residues are non-corrosive and non-conductive, usually not requiring removal. Use PCB Cleaner if needed.
Storage and Shelf Life: Must be stored in a cool, dry place away from ignition sources. Shelf life is indefinite at room temperature when stored properly.
Applications: Can be applied manually using a brush or via spraying.
Package Includes: 1 x ACE 100ml No Clean 0% Soldering Liquid Flux
*Images are for illustration only; actual product may vary.
