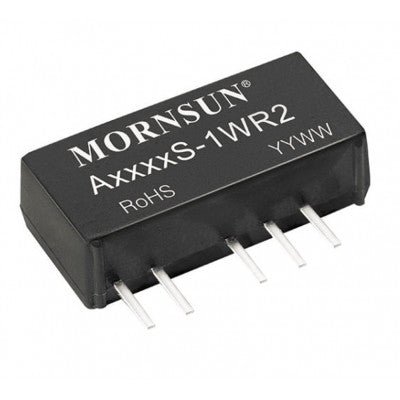

A1515S-1WR2 Mornsun 15V to ±15V DC-DC Converter 1W Power Supply Module
Designed for distributed power supply systems with high efficiency and compact design.
- I/p Voltage range: 13.5-16.5
- Nominal voltage: 15 Vdc
- O/p voltage: +15V, -15V
- O/p current: +-34/4(mA)
- Wattage: 1W
- Isolation: 1.5kVdc
- Package: SIP
Features:
- High power density
- High efficiency up to 80%
- Operating ambient temperature range: -40? to +105?
- Ultra compact SIP package
The A1515S-1WR2 series is designed for use in distributed power supply systems and is especially suitable for applications such as pure digital circuits, low-frequency analog circuits, relay-driven circuits, and data switching circuits. It is ideal where the input power supply voltage is relatively stable with a variation of ±10%Vin or less, an input to output isolation voltage of up to 1500VDC is necessary, and the requirement for tight output regulation is not as strict.
The I/O isolation test voltage is 1.5kVDC, and the unit is UL60950/EN60950 Approved.
Package Includes:
- 1 x A1515S-1WR2 Mornsun 15V to ±15V DC-DC Converter 1W Power Supply Module - Ultra Compact SIP Package
Images are for illustration only; actual product may vary.
