A0512S-2WR2 Series
Designed for distributed power supply systems with high efficiency and I/O isolation.
- I/p Voltage range: 4.5-5.5
- Nominal voltage: 5 Vdc
- O/p voltage: +-12V
- O/p current: +-83/8 (mA)
- Wattage: 2W
- Isolation: 1.5kVdc
- Package: SIP
Features:
- High power density
- High efficiency up to 86%
- Operating ambient temperature range: -40°C to +105°C
- No external components required
The A0512S-2WR2 series is especially suitable for use in pure digital circuits, low frequency analog circuits, relay-driven circuits, and data switching circuits where the input power supply voltage is relatively stable with a variation of ±10%Vin or less. It provides an input to output isolation voltage of up to 1500VDC and meets the IEC60950/UL60950/EN60950 standards. The requirement for tight output regulation is not as strict.
Package Includes:

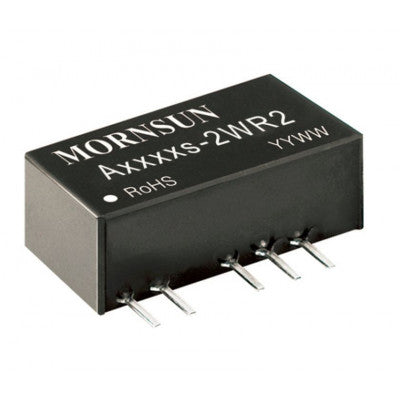

1 x A0512S-2WR2 Mornsun 5V to ±12V DC-DC Converter 2W Power Supply Module - Miniature SIP Package
Download DATASHEET: Download
Images are for illustration only; actual product may vary.
