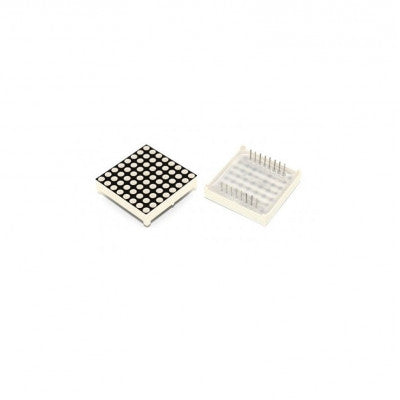

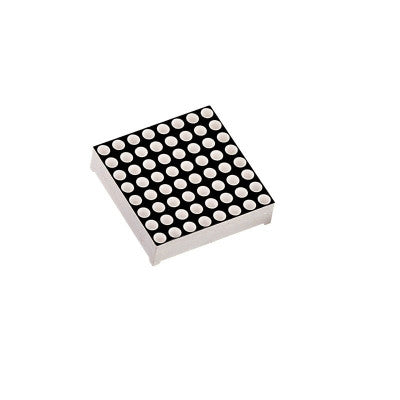

88 LED Matrix Module
A low-cost way to add display in electronic circuits with 88 red 3mm LEDs.
- LED Size: 3 mm
- Type: Common Cathode
- Emitted Colour: Red
- Face Color: Black
- Wavelength: 625 ~ 630nm
- Forward Voltage: 2.1V ~ 2.5V
- Forward Current: 20mA
- Operating Temperature (C): 40 to 85
- Length (mm): 32
- Width (mm): 32
- Height (mm): 8
- Weight (gm): 6 each
Features:
- Easy to Install on Breadboard
- Bright LED lights
- Compact Design
- Common Cathode Configuration

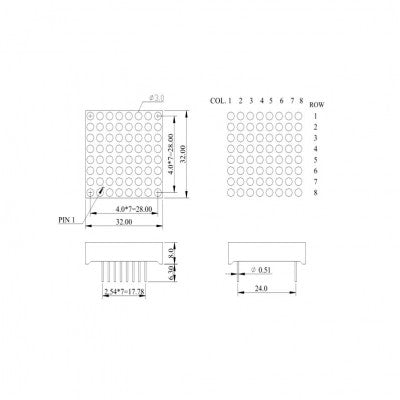

The 88 LED matrix module is a very useful and low-cost way to add display in your electronic circuits. It has 16 pins to achieve a different combination to ON/OFF the LEDs. It fits properly into any standard solderless breadboard. Great display for electrical and test equipment. The diameter of the LED is about 3 mm with common cathode configuration which emits Red color. The exact dimensions of this module are shown in the Schematic image.
These Displays are always in high demand in the DIY community as well as in Industrial Projects due to their multipurpose uses and cheap cost.
Applications:
- Bar-Graph Displays
- 7-Segment Displays
- Industrial Controllers
- Electronic Panel Meters
- LED Matrix Displays
- PIXEL gaming
- Character design
- Measuring instruments
- Hobby projects
- Display of symbols, simple graphics, and texts
Images are for illustration only; actual product may vary.
