74LS95 4-Bit Shift Register
A versatile shift register with synchronous operating modes
- Supply Voltage: 4.5 - 5.5V
- Operating Temperature: -55°C to 125°C
- Output Current (High): 0.4mA
- Output Current (Low): 8mA
Top Features:
- Synchronous, Expandable Shift Right
- Synchronous Shift Left Capability
- Synchronous Parallel Load
- Separate Shift and Load Clock Inputs
The 74LS95 is a versatile 4-Bit Shift Register with both serial and parallel synchronous operating modes. It offers the flexibility of synchronous shift right, shift left, and parallel loading functionalities. The data transfer from the inputs to the outputs is synchronized with the clock inputs, providing precise control over the shifting and loading operations.
Fabricated with the Schottky barrier diode process, the 74LS95 ensures high-speed performance and is fully compatible with all Motorola TTL families. It is an ideal choice for applications requiring efficient data shifting and parallel loading with reliable synchronous operation.
For more details or bulk pricing inquiries, please contact our sales team directly at sales02@thansiv.com or call +91-8095406416.

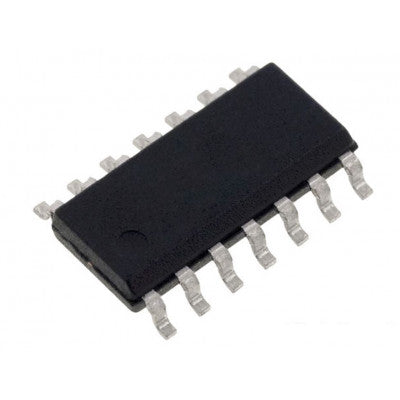

* Images are for illustration only; actual product may vary.
