74LS76 Dual Flip-Flops
Individual J, K, Clock Pulse Inputs with Fast Switching Speed
- Supply Voltage: 4.75 - 5.25 V
- Operation Temperature: 0 - 70°C
- Output Current (High): -0.4 mA
- Output Current (Low): 8 mA
Features:
- Individual Flip-Flops with J, K, Clock, Set, and Clear Inputs
- Data Transfer on HIGH-LOW Clock Transition
- Fast Switching Speed
- Operating Temperature up to 70°C
The 74LS76 offers individual J, K, Clock Pulse, Direct Set, and Direct Clear inputs. These dual flip-flops are designed so that when the clock goes HIGH, the inputs are enabled, and data will be accepted. The Logic Level of the J and K inputs will perform according to the Truth Table as long as minimum set-up times are observed. Input data is transferred to the outputs on the HIGH-to-LOW clock transitions.
For more details or bulk pricing, contact our sales team at sales02@thansiv.com or +91-8095406416.

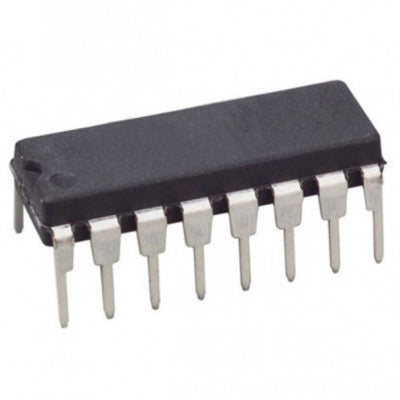

Images are for illustration only; actual product may vary.
