74LS74
Two independent D-type Positive Edge-triggered flip-flops
- Supply Voltage: 4.5 - 5.25 V
- Operating Ambient Temperature Range: 0 - 70 °C
- Output Current — High: -0.4 mA
- Output Current — Low: 8 mA
- Related Document: 74LS74 SMD Data Sheet
Top Features:
- Independent flip-flops
- Positive Edge-triggered
- Preset and Clear inputs
- Data transfer on clock pulse edge
The 74LS74 device contains two independent D-type Positive Edge-triggered flip-flops. A low level at preset or clear inputs sets or resets the output regardless of the levels of the other inputs. When preset and clear are inactive(high), data at the D input meeting the setup time requirements are transferred to the output on the positive-going edge of the clock pulse. Following the hold time interval, data at the D input may be changed without affecting the levels at the output. The 74LS74 is characterized for operation from 0°C to 70°C.

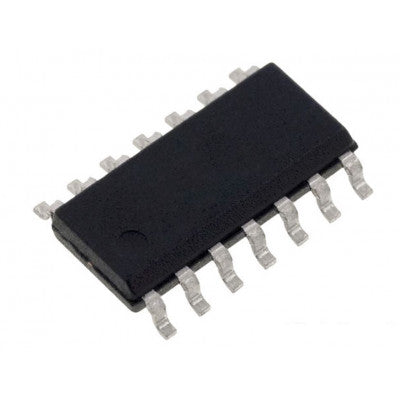

* Images are for illustration only; actual product may vary.
