74LS54 IC - Quad 2-Input AND/OR Inverter Gate
Contains 4-wide AND-OR-INVERT gates, suitable for military temperature range.
- Supply Voltage: 4.5 - 5.5V
- Operating Ambient Temperature Range: 70°C
- Input HIGH Voltage: 2.0V
- Input LOW Voltage: 0.7V
- Input Clamp Diode Voltage: -1.5V
- Output HIGH Voltage: 3.5V
- Output LOW Voltage: 0.4V
- Input HIGH Current: 20µA
- Input LOW Current: -0.4mA
- Short Circuit Current: -100mA

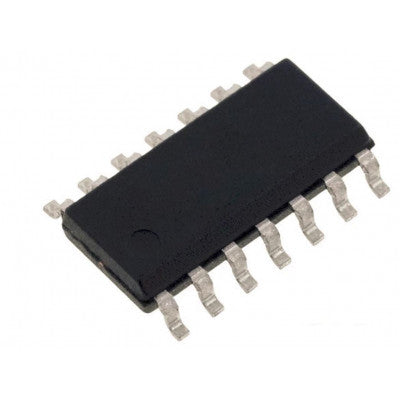

- Package Includes: 1 X 74LS54 IC - (SMD Package) Quad 2-Input AND/OR Inverter Gate IC (7454 IC)
Top Features:
- 4-wide AND-OR-INVERT gates
- Military temperature range
- Quad 2-Input design
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com +91-8095406416
Images are for illustration only; actual product may vary.
