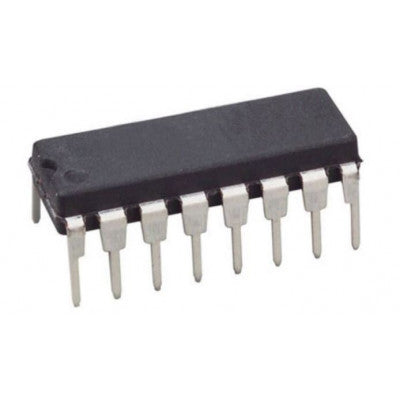

74LS352 Dual 4-input Multiplexer IC (74352)
An inverting data selector/multiplexer with complementary decoding and strobe inputs.
- Supply Voltage: 4.75 - 5.25V
- Input HIGH Voltage: 2.0V
- Input LOW Voltage: 0.8V
- High Level Output Current: -0.4mA
- Low Level Output Current: 8mA
- Free Air Operating Temperature: 70°C
- Package Includes: 1 X 74LS352 Dual 4-input Multiplexer IC (74352) DIP-16 Package
Top Features:
- Binary decoding data selection
- Parallel-to-serial conversion
- Strobe inputs for cascading
- High fan-out, low-impedance outputs
Each of these data selectors/multiplexers contains inverters and drivers to supply fully complementary, on-chip, binary decoding data selection to the AND-OR-invert gates. Separate strobe inputs are provided for each of the two four-line sections.
The 74LS352 is the inverting version of DM54/74LS153, allowing multiplexing from N lines to 1 line and performing parallel-to-serial conversion. It features a strobe (enable) line for cascading (N lines to n lines) and offers high fan-out, low-impedance, totem-pole outputs. The typical power dissipation is 31mW.
