74LS299 8-Bit Universal Shift/Storage Register
An 8-bit universal shift/storage register with 3-STATE outputs and versatile operation modes.
- Supply Voltage: 4.75 - 5.25V
- Input HIGH Voltage: 2.0V
- Input LOW Voltage: 0.8V
- HIGH Level Output Current: -0.4mA
- LOW Level Output Current: 24mA
- Free Air Operating Temperature: 70°C

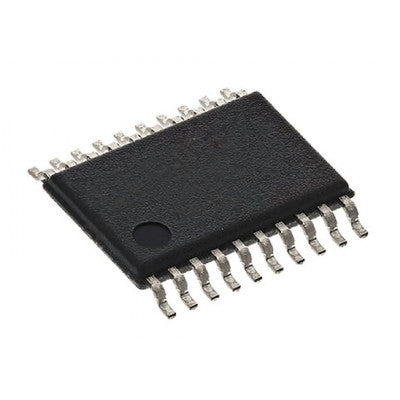

- Package Includes: 1 X 74LS299 IC - (SMD Package) 8-Input Universal Shift/Storage Register IC (74299 IC)
Top Features:
- Common I/O for reduced pin count
- Four operation modes: shift left, shift right, load, and store
- Separate shift right serial input and shift left serial input for easy cascading
- 3-STATE outputs for bus-oriented applications
The 74LS299 is an 8-bit universal shift/storage register with 3-STATE outputs. It offers four modes of operation: hold (store), shift left, shift right, and load data. The parallel load inputs and flip-flop outputs are multiplexed to reduce the total number of package pins. Separate outputs are provided for flip-flops Q0 and Q7 to allow easy cascading. A separate active LOW Master Reset is used to reset the register.
