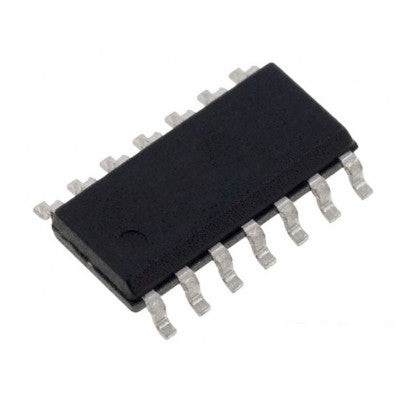

74HC86 Quad 2-Input EXOR Gate 14 Pin SMD IC
An advanced high speed CMOS 2-input Exclusive-OR gate for various logic circuits
- Type: Quad
- Material: Plastic
- Number of: 14 Pins
- Mounting: SMD
Top Features:
- High Noise Immunity: VNIH = VNIL = 28% VCC
- Power Down Protection on Inputs
- Designed for 2V to 6V Operating Range
- Low Noise: VOLP = 0.8V (Max)
The 74HC86 is an advanced high-speed CMOS 2-input Exclusive-OR gate fabricated with silicon gate CMOS technology. It operates at high speed similar to Bipolar Schottky TTL with low power dissipation typical of CMOS. The internal circuit consists of three stages, including a buffer output for high noise immunity and stable output. It can tolerate input voltages up to 7V, enabling interfacing between 5V and 3V systems. This IC is commonly used in Building Arithmetic Logic Circuits, Computational Logic Comparators, Error Detection Circuits, and True/Complement Element applications.
**Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com +91-8095406416**
Images are for illustration only; actual product may vary.
