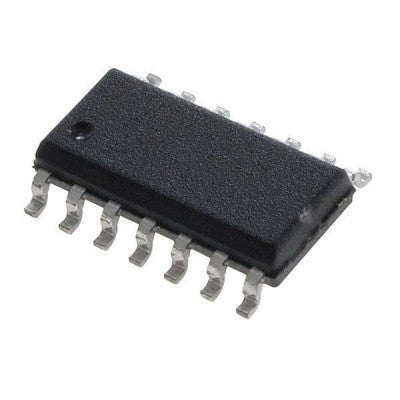

74HC4072 High Speed CMOS Dual 4-Input OR Gate IC (744072) DIP-14 Package
A high-speed CMOS dual 4-input OR gate with low power consumption.
- Supply Voltage: -0.5 to +7V
- DC Input Voltage: -0.5 to +0.5V
- DC Output Voltage: -0.5 to +0.5V
- DC VCC or Ground Current: 0 to +20 mA
- Power Dissipation: -500mA
- Ground Current: +50 to -mAT
- Storage Temperature: -65 to +150°C
- Lead Temperature (10 sec): -300°C
- Package: DIP-14
Features:
- High-speed performance (tPD = 9 ns at VCC = 5V)
- Low power dissipation (ICC = 1 µA at TA = 25°C)
- High noise immunity (VNIH = VNIL = 28% VCC)
- Output drive capability (|IOH| = IOL = 4 mA)
The 74HC4072 is a high-speed CMOS DUAL 4-INPUT OR GATE fabricated in silicon gate C2 MOS technology. It combines the high-speed performance of LSTTL with true CMOS low power consumption. The internal circuit consists of 3 stages, including a buffer output, providing high noise immunity and stable output. All inputs are protected against static discharge and transient excess voltage.
Symbol Parameter Min Max Unit
VCC Supply Voltage -0.5 +7V
VI DC Input Voltage -0.5 +0.5V
VO DC Output Voltage -0.5 +0.5V
IOK DC VCC or Ground Current - +20 mA
PD Power Dissipation - 500mA
IGND Ground Current +50 -mA
Tstg Storage Temperature -65 +150°C
TL Lead Temperature (10 sec) - 300°C
