74HC30 High-Speed Si-Gate CMOS 8-Input NAND Gate
High-speed CMOS 8-input NAND gate with standard output capability
- Supply Voltage: 0.5 to +7.0V
- DC Input Voltage: -1.5 to VCC + 1.5V
- DC Output Voltage: 0.5 to VCC + 0.5V
- Clamp Diode Current: ± 20mA
- DC Output Current, per pin: ± 25mA
- DC VCC or GND Current, per pin: ± 50mA
- Storage Temperature Range: -65°C to +150°C
- Power Dissipation: 500mW
Features:
- High-speed Si-gate CMOS technology
- Pin compatible with LSTTL
- Compliant with JEDEC standard no. 7A
- 8-input NAND function
The 74HC30 is a high-speed Si-gate CMOS device that is pin-compatible with low power Schottky TTL (LSTTL). It provides the 8-input NAND function and is compliant with JEDEC standard no. 7A. With standard output capability, this IC is suitable for various applications requiring high-speed operation.
For more details, refer to the 74HC30 SMD Data Sheet.

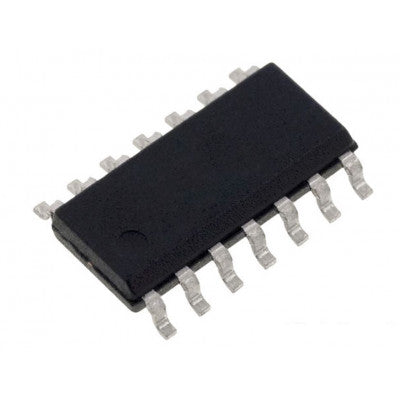

*Images are for illustration only; actual product may vary.
