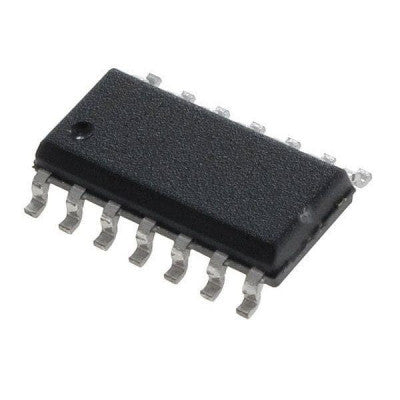

74HC20; 74HCT20 Dual 4-input NAND Gate
A dual 4-input NAND gate with clamp diodes for voltage interfacing.
- Supply voltage min: -0.5V
- Supply voltage max: +7V
- Input clamping current max: +20mA
- Output clamping current max: +20mA
- Output current max: +25mA
- Supply current max: 50mA
- Ground current min: -50mA
- Storage temperature min: -65°C
- Storage temperature max: +150°C
- Total power dissipation max: mW
- Package Includes: 1 X 74HC20 Dual 4-input NAND Gate IC (7420 IC) DIP-14 Package
Features:
- Complies with JEDEC standard JESD7A
- Low-power dissipation
- Input levels: For 74HC20: CMOS level, For 74HCT20: TTL level
- ESD protection: HBM JESD22-A114F exceeds 2000 V, MM JESD22-A115-A exceeds 200 V
Specified from -40°C to +80°C and from -40°C to +125°C.
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com +91-8095406416
Images are for illustration only; actual product may vary.
