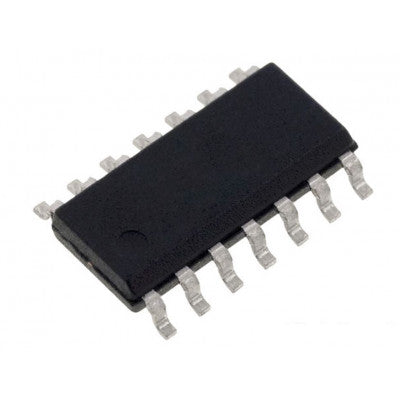

74HC165 High Speed Parallel-In/Serial-Out Shift Register
Advanced silicon-gate CMOS technology with low power consumption
- Supply Voltage: 0.5 to +7.0V
- DC Input Voltage: ±1.5 to VCC + 1.5V
- DC Output Voltage: ±0.5 to VCC + 0.5V
- Clamp Diode Current: ±20mA
- DC Output Current, per pin: ±25mA
- DC VCC or GND Current, per pin: ±50mA
- Storage Temperature Range: -65°C to +150°C
- Power Dissipation: 500mW
Features:
- Propagation delay: 20ns (clock to Q)
- Operating voltage range: 2–6V
- Low input current: 1µA max
- Low quiescent supply current: 80µA max
The 74HC165 is an 8-bit serial shift register that transfers data from QA to QH when clocked. It has the ability to drive 10 LS-TTL loads and is pin-out compatible with the standard 74LS logic family. Clocking is controlled through a 2-input NOR gate, allowing clock inhibition and data transfer on the positive clock edge.
Parallel loading is inhibited when SHIFT/LOAD input is high, and data is loaded directly into the register when taken low. All inputs are protected from static discharge, ensuring reliability and durability in operation.
