74HC164 8-Bit Shift Register
Advanced CMOS technology shift register with gated serial inputs and CLEAR
- Operating Frequency: 50 MHz
- Propagation Delay: 19 ns
- Supply Voltage Range: 2V to 6V
- Input Current: 1 µA max
Top Features:
- High noise immunity
- Low power consumption
- Gated serial inputs
- Pin-out compatible with 74LS logic family
The 74HC164 utilizes advanced silicon-gate CMOS technology providing high noise immunity and low consumption, comparable to low power Schottky devices. It features gated serial inputs and CLEAR, with each bit as a D-type master/slave flip-flop. Complete control over incoming data is possible through Inputs A & B. The 8-bit register allows for serial shifting in and out during positive clock transitions. Clear function is independent of the clock and can be achieved by a low-level CLEAR input.
All inputs are safeguarded from static discharge damage by internal diode clamps to VCC and ground. The 74HC164 comes with a wide operating supply voltage range of 2V to 6V, making it versatile for various applications. The logic family is functionally and pin-out compatible with the standard 74LS logic family. Information should meet setup and hold time requirements for accurate data entry.
Specification:
- Supply Voltage: 0.5 to +7.0V
- DC Input Voltage: 1.5 to VCC + 1.5V
- DC Output Voltage: 0.5 to VCC + 0.5V
- Clamp Diode Current: ±20 mA
- DC Output Current, per pin: ±25 mA
- DC VCC or GND Current, per pin: ±50 mA
- Storage Temperature Range: -65°C to +150°C
- Power Dissipation: 500 mW
- Lead Temperature: 260°C

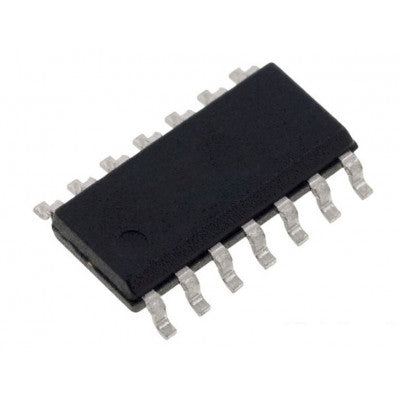

Images are for illustration only; actual product may vary.
