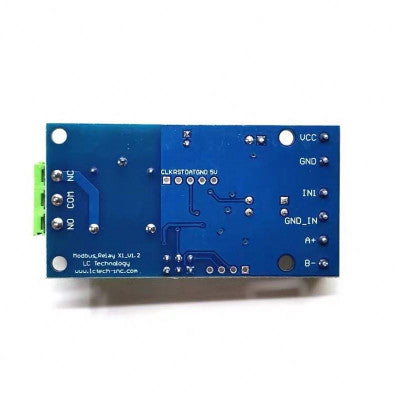

LC 1 Channel Modbus Relay Module
Equipped with mature and stable 8-bit MCU and RS485 level communication chip
- Communication Protocol: Standard Modbus RTU
- Communication Interface: RS485 / TTL UART
- Communication Baud Rate: 4800/9600/19200 (Default 9600bps)
- Photocoupler Input Signal Range: DC3.3-30V
- Output Signal: Relay switch signal
- Device Address: 1-255 (Default 255)
- Supply Voltage: DC7-24V
- Package Includes: 1 x 7-24V Modbus RTU 1 Channel Relay Module RS485
Features:
- Mature and stable 8-bit MCU and MAX485 level conversion chip
- Supports standard Modbus RTU protocol
- Supports RS485 / TTL UART interface
- Communication baud rate options: 4800/9600/19200
This LC 1 Channel Modbus Relay Module is designed for 1-way input signal detection and 1-way relay output. It is suitable for digital detection or power control applications.
The module features onboard one 5V, 10A / 250V AC 10A / 30V DC relay with diode leakage protection and a short response time. It supports various communication baud rates and offers a wide range of input signal detection.
The device address can be customized within the range of 1-255, with a default setting of 255. The supply voltage requirement is DC7-24V with input anti-reverse protection for added safety.
For more details or bulk pricing inquiries, please contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
