6x6x6x5 mm L-Type SMD Tactile Switch
Widely used surface mount tactile switch for electronic projects
- Mount: Surface Mount
- Number of Pins: 4
- Current Rating: 50 mA
- Orientation: Straight
- Throw Configuration: SPST
- Voltage Rating: 12 V
- Size (LxWxH): 6x6x5 mm
- Max Operating Temperature: 70°C
- Min Operating Temperature: -20°C
- Operating Force: 250 gf
Top Features:
- Surface mount design
- High operating force (3.0N or 3.6N)
- Long life of 300,000 cycles
- Waterproof and anti-static interference
The 6x6x6x5 mm L-Type SMD Tactile Switch is a standard input button for electronic projects, utilizing surface mount technology for space-saving applications. When pressed, the normally open pins are momentarily closed, completing the circuit. This switch features reliable dome contact technology and strong tactile feedback with multiple operating forces available.
Commonly used in telecommunications, consumer electronics, medical devices, and more, this switch offers a high operating force suitable for automotive equipment requirements. With a long life of 300,000 cycles and a middle stroke of 1.05mm, it is ideal for various electronic products and household appliances.
Its waterproof and anti-static interference properties, along with a high precision mechanism design, ensure acute operation and a long service life. Compact, lightweight, and easy to carry, this tactile switch provides good electrical conductivity for reliable performance.

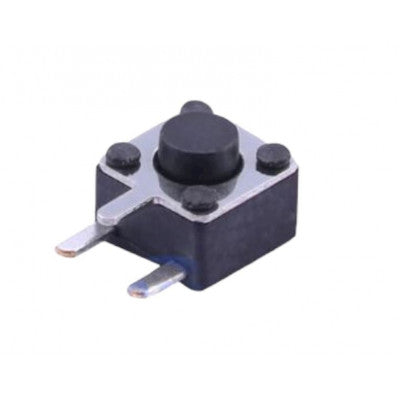

Package Includes: 5 x 6x6x5mm SMD Right Angle L-Type Tactile Switch
* Images are for illustration only; actual product may vary.
