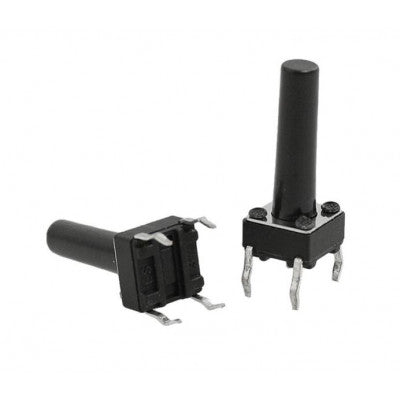

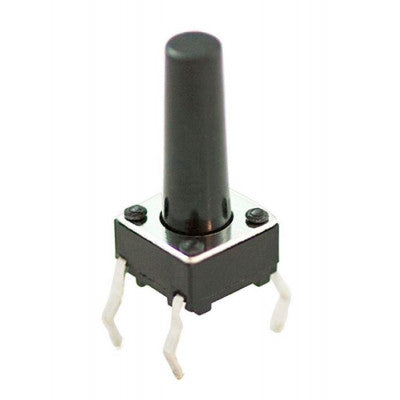

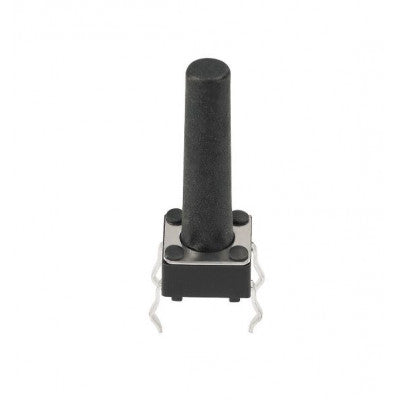

6x6x25mm Tactile 4 Pin Push Button Switch
Widely used standard input buttons for electronic projects
- Operating Voltage (VDC): 24
- Max. Operating Current (mA): 50mA
- On/Off Function: Push to ON
- Switch Type: Momentary
- Contact Type: Through-hole
- Contact Material: Brass
- Contact Resistance: 50m?
- Insulation Resistance (M?): 100
- Operating Temperature Range (°C): -20 to 70
- Operation Force: 1.56 +/- 0.5 N
- Operation Stroke: 0.25+0.2/-0.1mm
- Body Material: Plastic
- Mech. & Electrical Lifecycle: 50000
- Protection Standard: IP65
- Length (mm): 6
- Width (mm): 6
- Height (mm): 25
- Weight (gm): 2 (approx) (each)
Features:
- Through-hole design
- High operating force (1.5N or 2.5N)
- Long life of 300,000 cycles
- Waterproof and anti-static interference
These tactile switches are commonly used in telecommunications, consumer electronics, medical devices, and more. They offer reliable dome contact technology and strong tactile feedback, with multiple operating forces available. The switches are normally open and close the circuit when pressed. They are compact, lightweight, and have a high precision mechanism design for acute operation and long service life.
These switches come in a pack of 3, making them convenient to have around for various projects. They can be mounted on PCBs or used on solderless breadboards for temporary connections in prototypes.
Images are for illustration only; actual product may vary.
