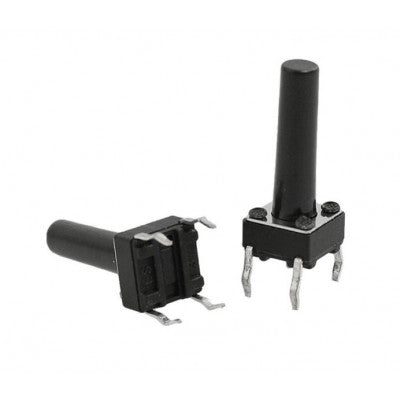

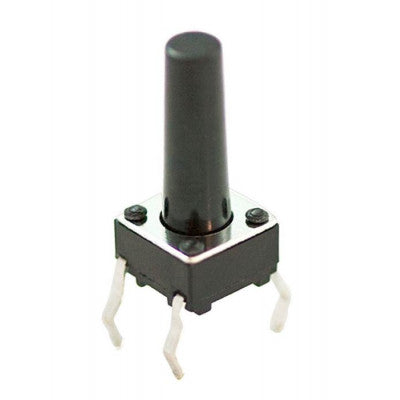

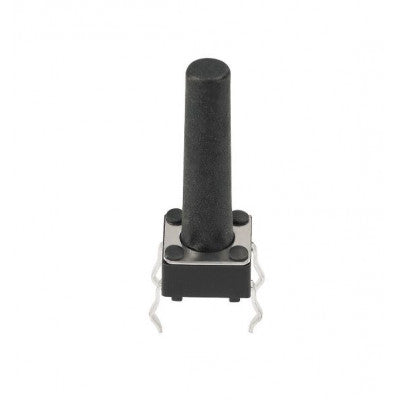

6x6x22mm Tactile 4 Pin Push Button Switch
Widely used standard input button for electronic projects
- Operating Voltage (VDC): 24
- Max. Operating Current (mA): 50mA
- On/Off Function: Push to ON
- Switch Type: Momentary
- Contact Type: Through-hole
- Contact Material: Brass
- Contact Resistance: 50m?
- Insulation Resistance (M?): 100
- Operating Temperature Range (°C): -20 to 70
- Operation Force: 1.56 +/- 0.5 N
- Operation Stroke: 0.25+0.2/-0.1mm
- Body Material: Plastic
- Mech. & Electrical Lifecycle: 50000
- Protection Standard: IP65
- Length (mm): 6
- Width (mm): 6
- Height (mm): 21
- Weight (gm): 2 (approx) (each)
Features:
- Through-hole design
- High operating force (1.5N or 2.5N) suited to automotive equipment requirements
- Long life of 300,000 cycles realized despite the high operating force
- Middle stroke (1.05mm)
These tactile switches offer reliable dome contact technology and strong tactile feedback, with multiple operating forces to choose from. They are waterproof, prevent oil, anti-pollution, and anti-static interference. The compact and lightweight design makes them easy to carry and dismantle, with good electrical conductivity. Applications include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation, and computer/peripherals.
They come in a pack of 3, making them handy to keep around for various projects.
* Images are for illustration only; actual product may vary.
