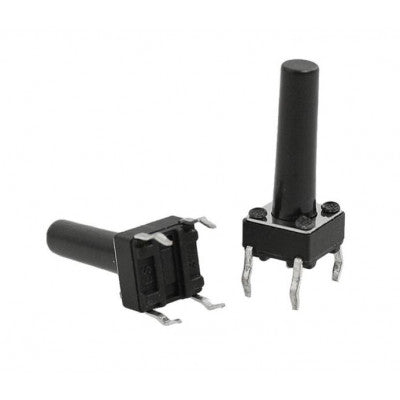

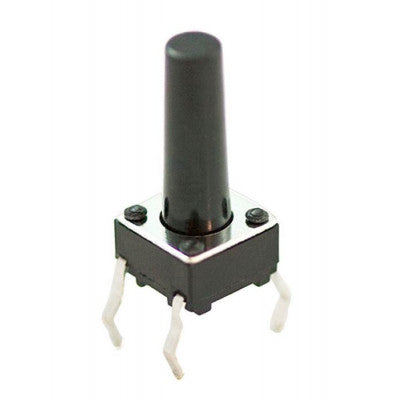

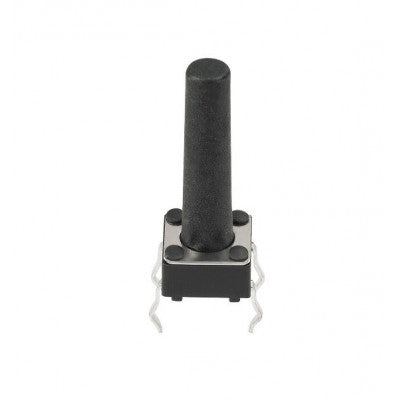

6x6x21mm Tactile 4 Pin Push Button Switch
Widely used standard input button for electronic projects
- Operating Voltage (VDC): 24
- Max. Operating Current (mA): 50mA
- On/Off Function: Push to ON
- Switch Type: Momentary
- Contact Type: Through-hole
- Contact Material: Brass
- Contact Resistance: 50m?
- Insulation Resistance (M?): 100
- Operating Temperature Range (°C): -20 to 70
- Operation Force: 1.56 +/- 0.5 N
- Operation Stroke: 0.25+0.2/-0.1mm
- Body Material: Plastic
- Mech. & Electrical Lifecycle: 50000
- Protection Standard: IP65
- Length (mm): 6
- Width (mm): 6
- Height (mm): 21
- Weight (gm): 2 (approx) (each)
Features:
- Through-hole design
- High operating force (1.5N or 2.5N)
- Long life of 300,000 cycles
- Used in electronic products, household appliances, and more
6x6x21mm Tactile 4 Pin Push Button Switch is a widely used standard input button for electronic projects. It works best when mounted on a PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open and when the button is pressed, they are momentarily closed to complete the circuit. This tact switch offers reliable dome contact technology and strong tactile feedback, with multiple operating forces to choose from. Applications include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation, and computer/peripherals. It comes in a pack of 3, making it convenient to have around.
This light touch switch is waterproof, prevents oil, anti-pollution, and anti-static interference. The high precision mechanism design offers acute operation and a long service life. It is compact and lightweight, making it easy to carry and dismantle. Additionally, it provides good electrical conductivity.
* Images are for illustration only; actual product may vary.
