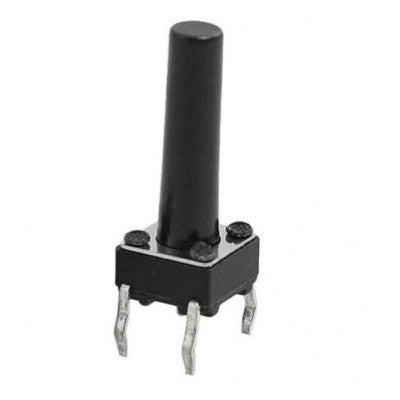

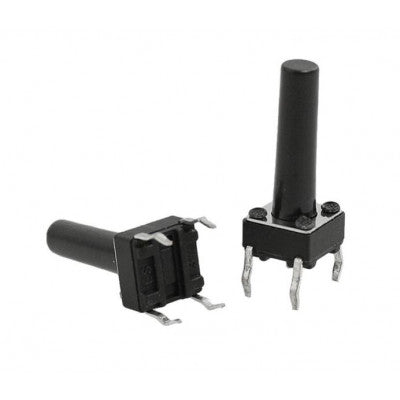

6x6x17mm Tactile 4 Pin Push Button Switch
Widely used standard input button for electronic projects
- Operating Voltage (VDC): 12
- Max. Operating Current (mA): 50mA
- On/Off Function: Push to ON
- Switch Type: Momentary
- Contact Type: Through-hole
- Contact Material: Brass
- Contact Resistance: 50m?
- Insulation Resistance (M?): 100
- Operating Temperature Range (°C): -20 to 70
- Operation Force: 1.56 +/- 0.5 N
- Operation Stroke: 0.25+0.2/-0.1mm
- Body Material: Plastic
- Mech. & Electrical Lifecycle: 50000
- Protection Standard: IP65
- Length (mm): 6
- Width (mm): 6
- Height (mm): 17
- Weight (gm): 1 (approx) (each)
Features:
- Through-hole design
- High operating force (1.5N or 2.5N) for automotive equipment
- Long life of 300,000 cycles
- Waterproof and anti-static interference
These switches are perfect for telecommunications, consumer electronics, medical devices, and more. They offer reliable dome contact technology and strong tactile feedback, making them suitable for various applications. The light touch switch is compact, lightweight, and ensures good electrical conductivity.
6x6x17mm Tactile 4 Pin Push Button Switches are ideal for electronic products, household appliances, and other projects where a reliable push button switch is needed. They come in a pack of 5, making them a convenient choice for your electronic prototyping needs.
Images are for illustration only; actual product may vary.
