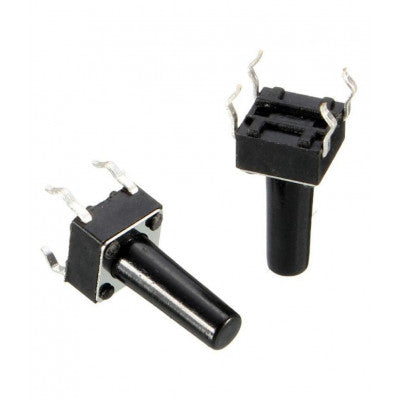

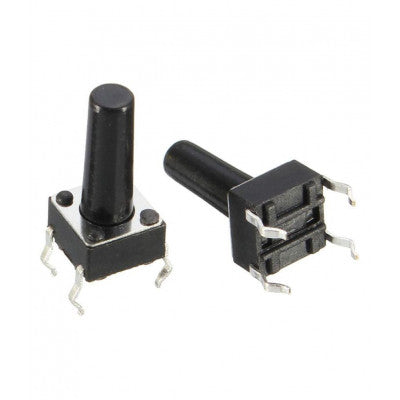

6x6x15mm Tactile 4 Pin Push Button Switch
Widely used standard input button for electronic projects
- Operating Voltage (VDC): 12
- Max. Operating Current (mA): 50mA
- On/Off Function: Push to ON
- Switch Type: Momentary
- Contact Type: Through-hole
- Contact Material: Brass
- Contact Resistance: 50m?
- Insulation Resistance (M?): 100
- Operating Temperature Range (°C): -20 to 70
- Operation Force: 1.56 +/- 0.5 N
- Operation Stroke: 0.25+0.2/-0.1mm
- Body Material: Plastic
- Mech. & Electrical Lifecycle: 50000
- Protection Standard: IP65
- Length (mm): 6
- Width (mm): 6
- Height (mm): 15
- Weight (gm): 1 (approx) (each)
Features:
- Through-hole design
- High operating force (1.5N or 2.5N) for automotive equipment
- Long life of 300,000 cycles
- Waterproof and anti-static interference
6x6x15mm Tactile 4 Pin Push Button Switch is a widely used standard input button for electronic projects. It works best when mounted on a PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open and when the button is pressed, they are momentarily closed to complete the circuit. This tact switch offers reliable dome contact technology and strong tactile feedback, with multiple operating forces to choose from. It is suitable for various applications including telecommunications, consumer electronics, medical devices, and more.
This light touch switch has a high precision mechanism design that offers acute operation and a long service life. It is compact, lightweight, easy to carry, and dismantle. With a high operating force, it is suited for automotive equipment requirements. The switch has a middle stroke of 1.05mm and is commonly used in electronic products and household appliances.
Package Includes: 5 x 6x6x15mm Tactile 4 Pin Push Button Switch
* Images are for illustration only; actual product may vary.
