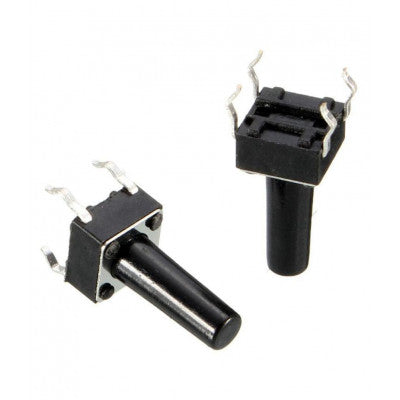

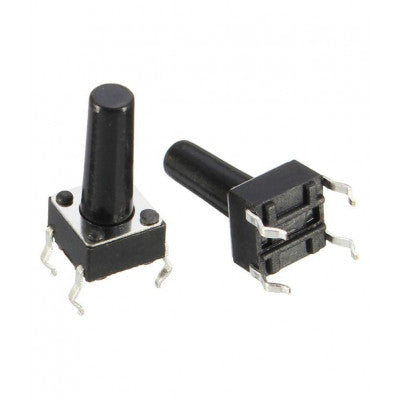

6x6x14mm Tactile 4 Pin Push Button Switch
Widely used standard input button for electronic projects
- Operating Voltage (VDC): 12
- Max. Operating Current (mA): 50mA
- On/Off Function: Push to ON
- Switch Type: Momentary
- Contact Type: Through-hole
- Contact Material: Brass
- Contact Resistance: 50m?
- Insulation Resistance (M?): 100
- Operating Temperature Range (°C): -20 to 70
- Operation Force: 1.56 +/- 0.5 N
- Operation Stroke: 0.25+0.2/-0.1mm
- Body Material: Plastic
- Mech. & Electrical Lifecycle: 50000
- Protection Standard: IP65
- Length (mm): 6
- Width (mm): 6
- Height (mm): 14
- Weight (gm): 1 (approx) (each)
Features:
- Through-hole design
- High operating force (1.5N or 2.5N) suited to automotive equipment requirements
- Long life of 300,000 cycles realized despite high operating force
- Middle stroke (1.05mm)
These tactile switches are commonly used in electronic products, household appliances, and more. They are waterproof, prevent oil, anti-pollution, and anti-static interference. The high precision mechanism design offers acute operation and long service life. Compact and lightweight, they are easy to carry and dismantle, providing good electrical conductivity.
Applications include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation, and computer/peripherals.
Package Includes:
- 5 x 6x6x14mm Tactile 4 Pin Push Button Switch
Images are for illustration only; actual product may vary.
