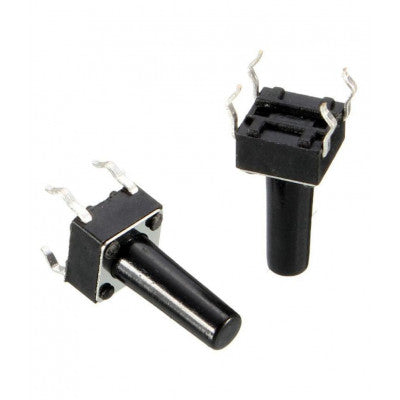

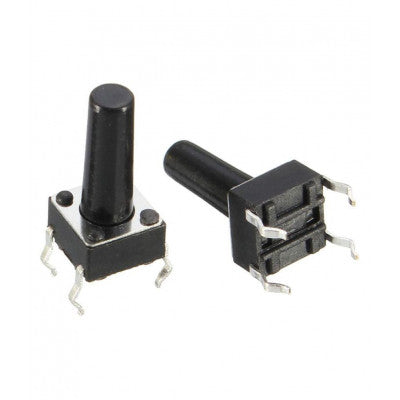

6x6x13mm Tactile 4 Pin Push Button Switch
Widely used standard input button for electronic projects
- Operating Voltage (VDC): 12
- Max. Operating Current (mA): 50mA
- On/Off Function: Push to ON
- Switch Type: Momentary
- Contact Type: Through-hole
- Contact Material: Brass
- Contact Resistance: 50m?
- Insulation Resistance (M?): 100
- Operating Temperature Range (°C): -20 to 70
- Operation Force: 1.56 +/- 0.5 N
- Operation Stroke: 0.25+0.2/-0.1mm
- Body Material: Plastic
- Mech. & Electrical Lifecycle: 50000
- Protection Standard: IP65
- Length (mm): 6
- Width (mm): 6
- Height (mm): 13
- Weight (gm): 1 (approx) (each)
Features:
- Through-hole design
- High operating force (1.5N or 2.5N)
- Long life of 300,000 cycles
- Middle stroke (1.05mm)
These switches are ideal for telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation, and computer/peripherals. The tact switch offers reliable dome contact technology and strong tactile feedback, with multiple operating forces available. It is waterproof, oil-resistant, anti-pollution, and anti-static interference. The compact and lightweight design makes it easy to carry and dismantle, while the high precision mechanism ensures acute operation and long service life.
Package Includes:
- 5 x 6x6x13mm Tactile 4 Pin Push Button Switch
Images are for illustration only; actual product may vary.
