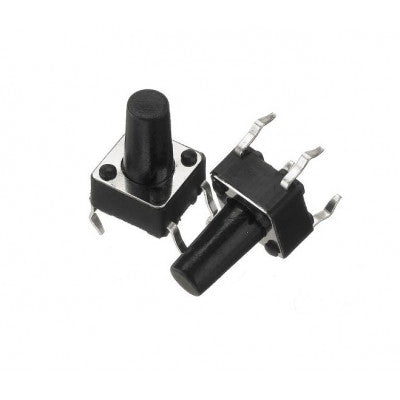

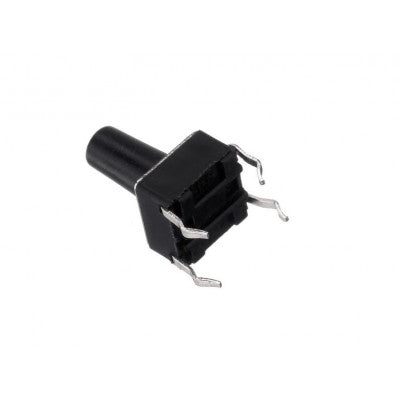

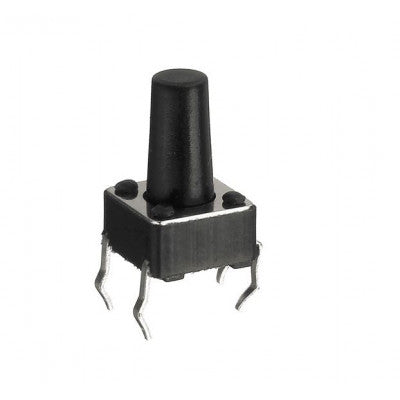

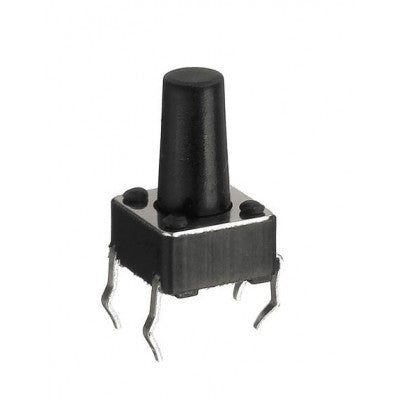

6x6x12mm Tactile 4 Pin Push Button Switch
Widely used standard input buttons for electronic projects
- Operating Voltage (VDC): 12
- Max. Operating Current (mA): 50mA
- On/Off Function: Push to ON
- Switch Type: Momentary
- Contact Type: Through-hole
- Contact Material: Brass
- Contact Resistance: 50m?
- Insulation Resistance (M?): 100
- Operating Temperature Range (°C): -20 to 70
- Operation Force: 1.56 +/- 0.5 N
- Operation Stroke: 0.25+0.2/-0.1mm
- Body Material: Plastic
- Mech. & Electrical Lifecycle: 50000
- Protection Standard: IP65
- Length (mm): 6
- Width (mm): 6
- Height (mm): 12
- Weight (gm): 1 (approx) (each)
Features:
- Through-hole design
- High operating force (1.5N or 2.5N) for automotive equipment
- Long life of 300,000 cycles
- Waterproof and anti-static interference
6x6x12mm Tactile 4 Pin Push Button Switch is a widely used standard input button for electronic projects. It works best when mounted on a PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open and close momentarily when the button is pressed, completing the circuit. This tact switch offers reliable dome contact technology and strong tactile feedback, with multiple operating forces to choose from. It is suitable for various applications including telecommunications, consumer electronics, medical devices, and more.
This light touch switch is compact, lightweight, and easy to carry and dismantle. It has a high precision mechanism design that offers acute operation and a long service life. The switch is designed for applications in electronic products, household appliances, and more.
* Images are for illustration only; actual product may vary.
