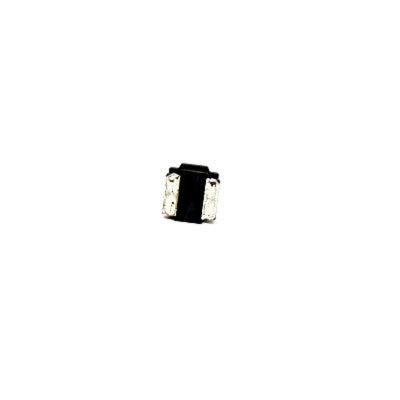

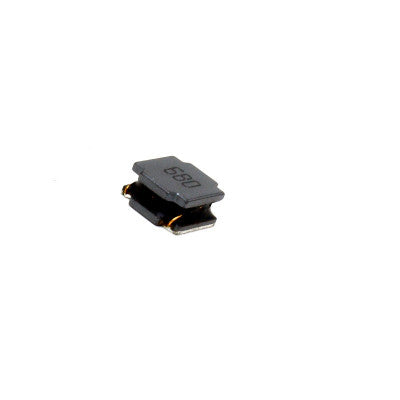

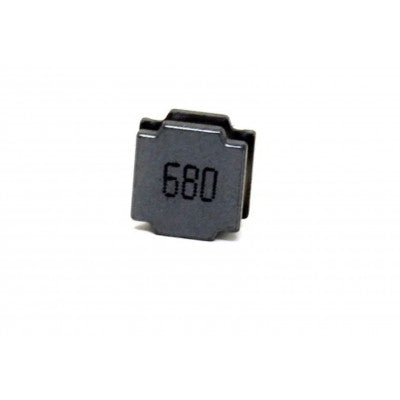

68uH 20% 0.507 Ohm 890 mA Coupled Inductor
A low DCR, high rated current SMD power inductor for various applications.
- Inductance: 68uH
- Tolerance(%): 20
- Mounting Type: SMD
- DC Resistance (DCR) at 20°C: 0.507mΩ
- Current Rating (A): 890mA
- Length (mm): 7.6
- Width (mm): 7.6
- Height (mm): 3.4
- Weight (gm): 0.8
Features:
- Magnetic-resin shielded construction reduces buzz noise
- Metallization on ferrite core for shock resistance
- Closed magnetic circuit design reduces leakage flux and EMI
- 30% higher current rating than conventional inductors
This Coupled Inductor is lead-free and RoHS compliant, suitable for applications in buck converters, laptops, displays, and network communication equipment.
Package Includes: 1 x 68uH 20% 0.507 Ohm 890 mA Coupled Inductor
* Images are for illustration only; actual product may vary.
