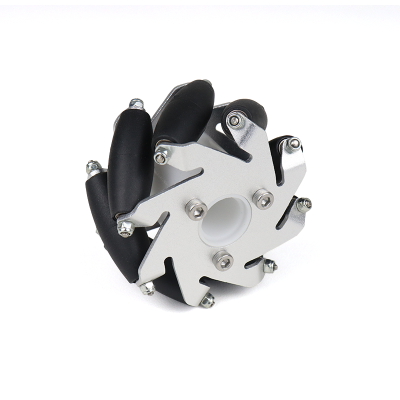

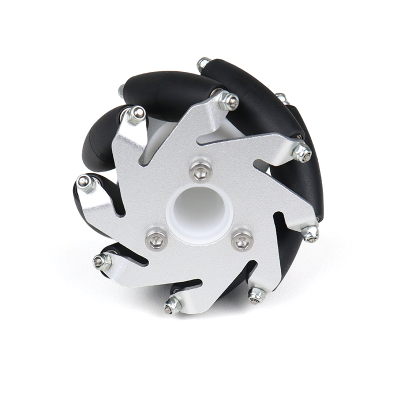

60mm Aluminum Mecanum Wheels SET 2 Left AND 2 Right
The smallest size Mecanum wheel set with 2 left and 2 right wheels.
- Roller Type: Bearing
- Body Material: Aluminum
- Internal Diameter (ID) (mm): 16
- Length of Roller (mm): 30
- Load Capacity (Kg/Wheel): 3
- Net weight (gm): 93 Per Wheel
- Number of Plates: 2
- Number of Rollers per Wheel: 8
- Outer Diameter (OD) (mm): 60
- Roller Material: Nylon+ TPR
- Spacer material: Nylon
- Wheel Width (mm): 31
- Plate Thickness (mm): 2.5
- Nut Type: Nyloc Nut
Top Features:
- Small size for agility

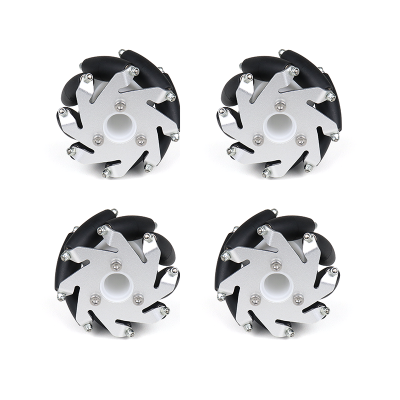

- Includes 2 left and 2 right wheels
- Aluminum body for durability
- Load capacity of 3 Kg per wheel
The 60mm Aluminum Mecanum Wheels set is perfect for creating agile robots. Each wheel consists of rollers set at a 45-degree rotational axis parallel to the wheel's axis, allowing for omnidirectional movement. The set includes 2 left and 2 right wheels, along with necessary coupling components.
By adding your drive motor, controller boards, and batteries, you can easily set up these wheels. Moving all four wheels in the same direction causes the robot to move forward or backward. Running wheels in opposite directions on each side enables lateral movement without changing orientation.
One of the main advantages of Mecanum wheels over Omnidirectional wheels is that all four wheels contribute force when the robot moves in any direction, maintaining stability.
Package Includes:
- 2 x 60mm Aluminum Mecanum Wheels (bearing type roller) Right
- 2 x 60mm Aluminum Mecanum Wheels (bearing type roller) Left

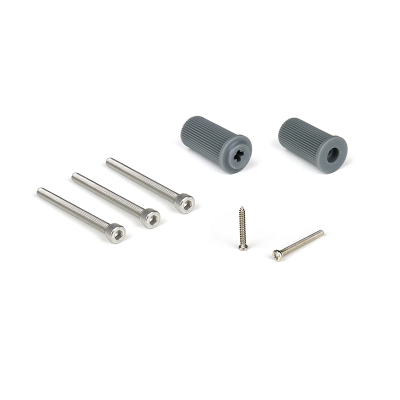

- 3 x M335 Allen Bolts for coupling per Wheel (total 12 bolts)
- 1 x 2-Coupling set per Wheel
*Images are for illustration only; actual product may vary.
