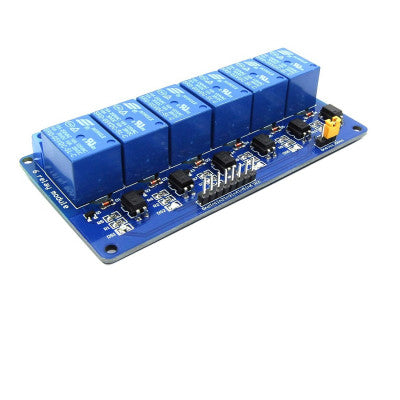

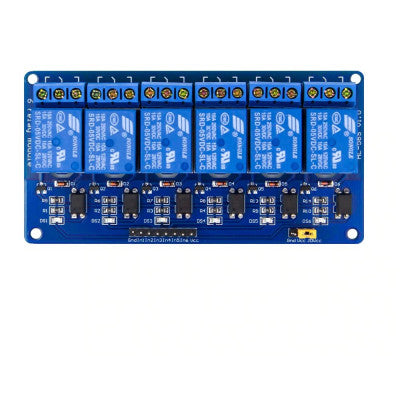

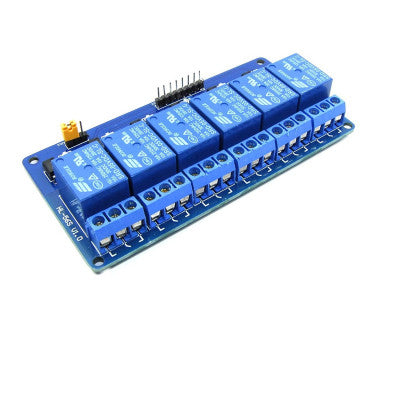

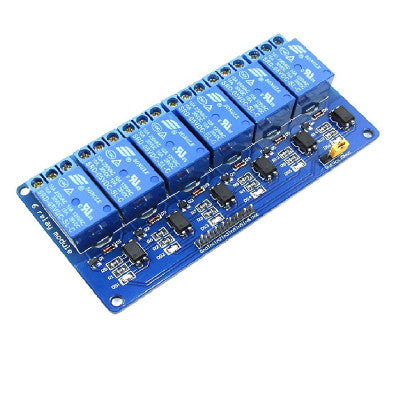

6 Channel 5V Relay Module with Optocoupler
Control multiple devices with this versatile relay module.
- Operating Voltage: 3.3 ~ 5 VDC
- Supply Current: 20mA
- Trigger Voltage: 5 VDC
- Switching Voltage (AC): 250V @ 10A
- Switching Voltage (DC): 30V @ 10A
- Operating Temperature: -40 to 85°C
- Storage Condition: -65 to 125°C
- Length: 104 mm
- Width: 53 mm
- Height: 17 mm
- Weight: 78 gm
Top Features:
- 6-way relay output with 10A 250V contact capacity
- Optocoupler isolation for strong drive capability
- Trigger terminal with independent power supply
- Activity indicator light for each relay
The 6 Channel 5V Relay Module with Optocoupler features a normally open interface with a maximum load of AC 250V/10A and DC 30V/10A. It offers optocoupler isolation, strong drive capability, and stable performance. The module has a trigger current of 5mA and operates at a voltage of DC 5V. Each channel can be triggered by setting a high or low level via a jumper.
The module is designed to be fault-tolerant, ensuring that even if the control line is disconnected, the relay will not move. It includes status indicators for power (green) and 6-channel relay status (red). All module size interfaces can be easily connected through the terminal block, making it convenient and practical for various applications.
With a single-chip design, the relay module offers reliable performance, strong anti-interference, and no false triggering. It is suitable for industrial sector, PLC control, and home intelligent control applications.
Package Includes: 1 x 6 Channel 5V Relay Module with Optocoupler
* Images are for illustration only; actual product may vary.
