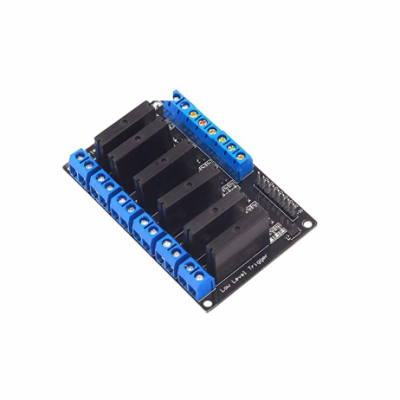

6 Channel 5V SSR Solid State Relay Module 250V 2A Output with Resistive Fuse
Control up to 2A at 240VAC with this 6-channel SSR relay module based on Omron G3MB-202P.
- Part Number: G3MB-202P
- Working current(mA): 12.5
- Trigger Current (mA): 2
- Trigger Voltage (VDC): 5
- Switching Voltage (VAC): 240 @ 2A
- Max. Load: 2A @ 240V AC
- Length (mm): 80
- Width (mm): 50
- Height (mm): 24
- Weight (gm): 49
Top Features:
- Assembled and electrically tested
- Led indicator for each relay
- Control appliances with large current
- Directly controllable by a Microcontroller
This 6 Channel SSR Solid State Relay Module is designed based on the Omron G3MB-202P SSR relay, capable of controlling up to 2A at 240VAC. Each relay channel features NO (Normal Open), COM (Common), and NC (Normal Closed) terminals for versatile connectivity.
A Solid State Relay operates similarly to a mechanical relay but can be controlled through a digital signal. It produces no noise and has a longer lifespan compared to traditional relays. When the input logic voltage is applied, the relay channels switch connectivity, turning the connected load on or off.
Input parts:
- DC+: connect power positive
- DC-: connect power negative
- CH1-CH6: relay module signal trigger points (Effective low-level trigger)
Input control signal voltage: 0-2.5V status low level (relay OFF), 3-5V status high level (relay ON).
Package Includes: 1 x 6 Channel 5V Relay Module Solid State Low-Level SSR DC Control 250V 2A with Resistive Fuse
Images are for illustration only; actual product may vary.
