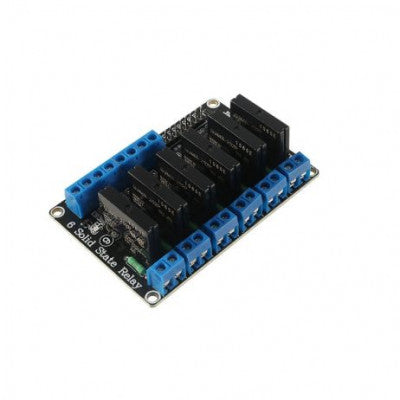

5 V 6Channel SSR Solid State Relay Module 250V 2A Output with Resistive Fuse
Control up to 2A at 240VAC with this 6 Channel SSR relay module based on Omron H3MB-052D.
- Part Number: H3MB-052D
- Working current(mA): 12.5
- Trigger Current (mA): 2
- Trigger Voltage (VDC): 3-24
- Switching Voltage (VDC): 50@2A
- Max. Load: 2A @50V AC
- Length (mm): 80
- Width (mm): 50
- Height (mm): 24
- Weight (gm): 49
Top Features:
- Assembled and electrically tested
- Led indicator for each relay
- Control appliances with large current
- Directly controllable by a Microcontroller
This 6 Channel SSR Solid State Relay Module is equipped with the Omron H3MB-052D SSR relay, capable of controlling up to 2A at 240VAC. Each relay channel features NO (Normal Open), COM (Common), and NC (Normal Closed) terminals for versatile connectivity.
A Solid State Relay operates silently and boasts a longer lifespan compared to traditional mechanical relays. When the input logic voltage is applied, the NC disconnects from COM while the NO connects, enabling control over the connected load.
Input parts:
- DC+: connect power positive
- DC-: connect power negative
- CH1-CH6: relay module signal trigger points (Effective low-level trigger)
Input control signal voltage: 0-2.5V status low level (relay OFF), 3-5V status high level (relay ON).
Package Includes: 1 x 6 Channel 3-24V Relay Module Solid State Low-Level SSR DC Control DC with Resistive Fuse
Images are for illustration only; actual product may vary.
