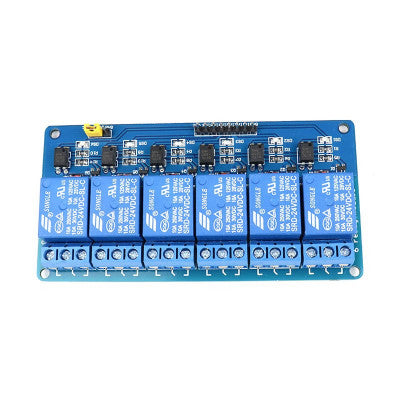

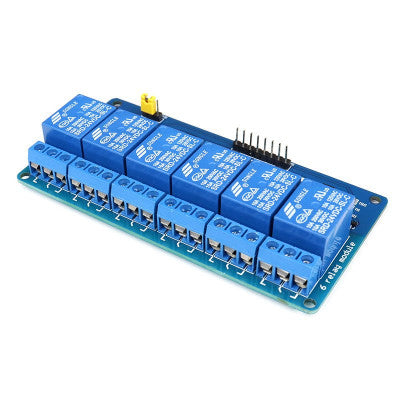

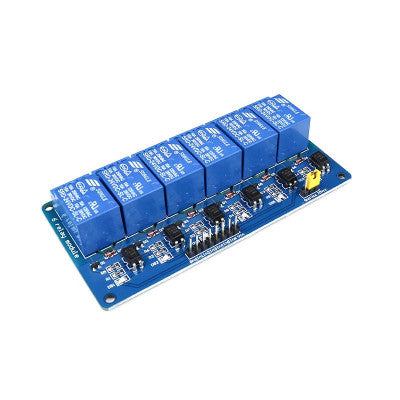

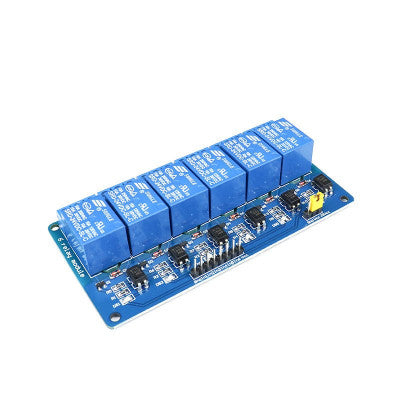

6 Channel 24V Relay Module with Optocoupler
A versatile relay module for controlling appliances and equipment with large currents.
- Trigger Voltage: 24V
- Trigger Current: 20mA
- Switching Voltage (AC): 250V @ 10A
- Switching Voltage (DC): 30V @ 10A
- Operating Temperature: -40°C to 100°C
- Opt. Relative Humidity: 20% - 85%
- Storage Condition: -40°C to 125°C
- Length: 103mm
- Width: 53mm
- Height: 17mm
- Weight: 76g
Features:
- 24V relay with AC contact capacity of 10A 250V and optocoupler protection.
- Onboard power supply module eliminates the need for an external power supply.
- I/O port driver is active low.
- Can be used as a microcontroller development board module or for appliance control.
This 24V 6-Channel Relay interface board is designed for easy control by various microcontrollers like Arduino, 8051, AVR, PIC, DSP, ARM, MSP430, and TTL logic. Each relay requires 15-20mA driver current and features an indication LED for relay output status. The module includes light coupling protection (optocoupler) for isolation of control circuitry and supports all SCM Drive. The LM2596S buck chip may exhibit slight heat generation during operation, which is normal for relays with long working hours.
The module uses top-quality isolation optocouplers for strong anti-jamming ability and stable performance. Each relay's common terminal COM is independent, allowing user-friendly access to different signals. The module can handle full on/off for each of the 6 channels and is equipped with motion lights for each relay. All interfaces can be easily connected through terminal leads for convenience.
Package Includes:
- 1 x 24V 6 Channel Relay Module with Light Coupling
