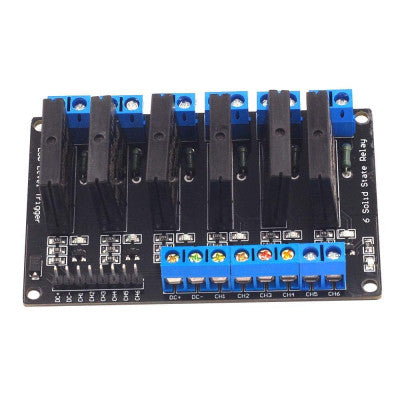

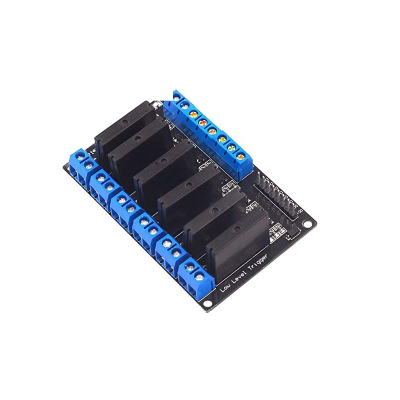

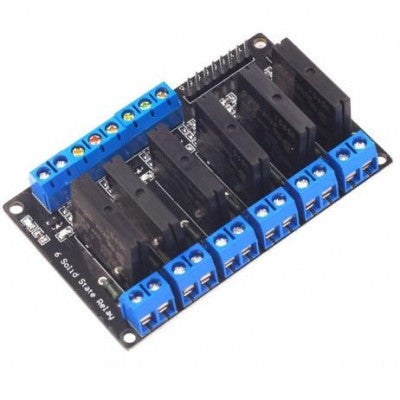

24V 6 Channel SSR Solid State Relay Module 250V 2A Output with Resistive Fuse
Control up to 2A at 240VAC with this 6 Channel SSR relay module based on Omron G3MB-202P.
- Part Number: G3MB-202P
- Working current(mA): 12.5
- Trigger Current (mA): 2
- Trigger Voltage (VDC): 25
- Switching Voltage (VAC): 240 @ 2A
- Max. Load: 2A @ 240V AC
- Length (mm): 80
- Width (mm): 50
- Height (mm): 24
- Weight (gm): 49
Top Features:
- Assembled and electrically tested
- Led indicator for each relay
- Control appliances with large current
- Directly controllable by a Microcontroller
This 6 Channel SSR Solid State Relay Module is equipped with the Omron G3MB-202P SSR relay, capable of controlling up to 2A at 240VAC. Each relay channel features NO (Normal Open), COM (Common), and NC (Normal Closed) terminals for versatile connectivity.
A Solid State Relay operates silently and offers a longer lifespan compared to traditional mechanical relays. By applying input logic voltage to the coil, the conductivity between NC and COM is broken while NO connects with COM, enabling the control of connected loads.
Input parts:
- DC+: connect power positive
- DC-: connect power negative
- CH1-CH6: relay module signal trigger points (Effective low-level trigger)
Input control signal voltage: 0-2.5V status low level, relay OFF; 3-5V status high level, relay ON
Package Includes: 1 x 6 Channel 24V Relay Module Solid State Low-Level SSR DC Control 250V 2A with Resistive Fuse
* Images are for illustration only; actual product may vary.
