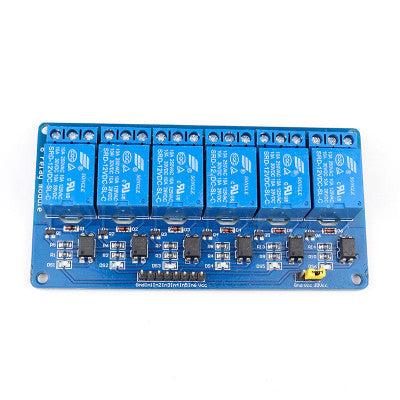

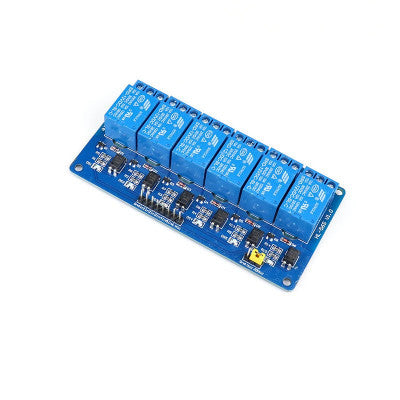

6 Channel 12V Relay Module with Optocoupler
Reliable and stable relay module with optical coupling isolation
- Trigger Voltage: 12VDC
- Trigger Current: 20mA
- Switching Voltage (AC): 250V @ 10A
- Switching Voltage (DC): 30V @ 10A
- Operating Temperature: -40 to 85°C
- Opt. Relative Humidity: 20% - 85%
- Storage Condition: -65 to 125°C
- Length: 104mm
- Width: 53mm
- Height: 17mm
- Weight: 80g
Features:
- High-current relay 10A@250VAC / 10A@30VDC
- Controls AC and DC appliances
- Quality screw terminals for easy connection
- Freewheeling diode for microcontroller protection
This 6 Channel 12V Relay Module with Optocoupler is designed with a double FR4 circuit board and high-end SMT process for reliable and stable performance. It features power and relay operation instructions for easy use. The module interface includes various trigger signals for different relay channels, making it versatile for different applications.
The inputs are isolated to protect delicate control circuitry, and it can be controlled by a wide range of microcontrollers such as Arduino, AVR, PIC, and ARM. The high-voltage relay eliminates the risk of relay heating up, ensuring safe operation.
With high-quality screw terminals and LED status indicators, this relay module offers convenient and safe control of various appliances and equipment. It is widely used in MCU control, industrial sectors, PLC control, and smart home applications.
