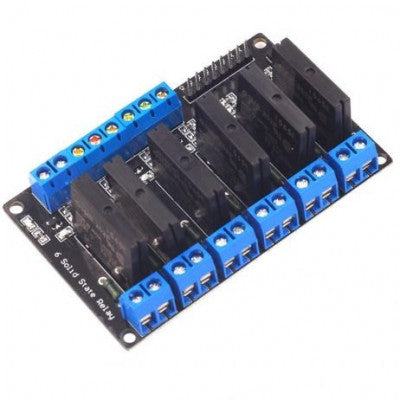

6 Channel SSR Solid State Relay Module
Control up to 2A at 240VAC with OmronG3MB-202P SSR Relay
- Part Number: G3MB-202P
- Working current(mA): 12.5
- Trigger Current (mA): 2
- Trigger Voltage (VDC): 12
- Switching Voltage (VAC): 50/60 @ 2A
- Max. Load: 2A @ 50/60V AC
- Length (mm): 80
- Width (mm): 50
- Height (mm): 24
- Weight (gm): 49
Features:
- Assembled and electrically tested
- Led indicator for each relay
- Control appliances with large current
- Direct control by Microcontroller
This 6 Channel SSR Solid State Relay Module is based on the OmronG3MB-202P SSR relay, capable of controlling up to 2A at 240VAC. Each relay channel has NO (Normal Open), COM (Common), NC (Normal Closed) terminals. Solid State Relays, like this one, offer noise-free operation and a longer lifespan compared to traditional mechanical relays.
When the input logic voltage is applied, the NC disconnects from COM while the NO connects with COM, either turning on or off the connected load based on the wiring.
Input parts:
- DC+: connect power positive
- DC-: connect power negative
- CH1-CH6: relay module signal trigger points (Effective low-level trigger)
Input control signal voltage: 0-2.5V status low level (relay OFF), 3-5V status high level (relay ON).
Package Includes: 1 x 6 Channel 12V Relay Module Solid State Low Level SSR DC Control 250V 2A with Resistive
* Images are for illustration only; actual product may vary.
