6 Channel 12V Solid State Relay Module
A versatile solid-state relay module for controlling high-voltage AC loads with ease.
- Part Number: G3MB-202P
- Power supply: 12VDC/160mA
- Trigger Voltage (VDC): 12
- Switching Voltage (VAC): 240 @ 2A
- Isolation: Phototriac
- Zero Cross: Yes
- Length (mm): 80
- Width (mm): 53
- Height (mm): 24
- Weight (gm): 51
Top Features:
- 6-channel 2 AMP Solid State Relay board
- Control 6 loads of up to 2 amps each at 240 V AC
- Assembled and electrically tested
- Led indicator for each relay
A solid-state relay (SSR) functions like a mechanical relay but with the advantages of generating no noise and having a longer lifespan. It can be controlled through a digital signal and switched faster without wearing out. The module includes input parts such as DC+ connected to VCC, DC- connected to GND, and multiple signal triggering channels for each relay module.
With the ability to control various appliances and equipment with a large current, this relay module is suitable for applications like lighting and holiday displays. It can be directly controlled by a Microcontroller and offers input control signal voltage specifications for precise operation.

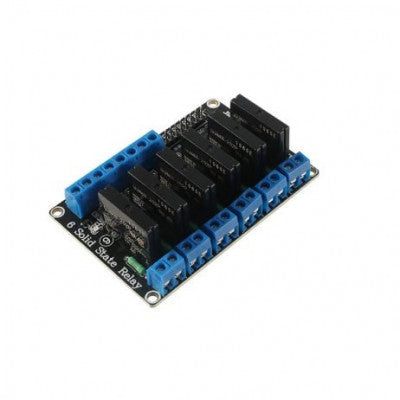

The package includes 1 x 6 Channel 12V Relay Module Solid State High-Level SSR DC Control 250V 2A with Resistive Fuse.
* Images are for illustration only; actual product may vary.
