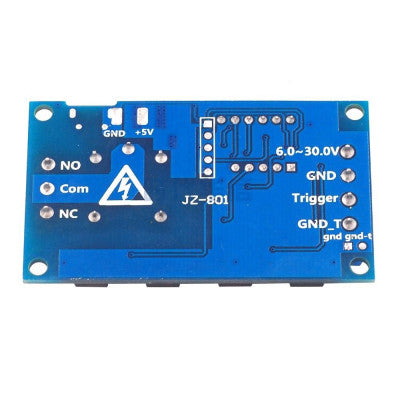

6-30V 1-Channel Delay Power Relay Module
Perfect for Home Automation Delay Timer Control Switch Module
- Operating Voltage (VDC): 6V ~ 30
- Supply Current (A): 0.05
- Trigger Voltage (VDC): 5
- Switching Voltage (VAC): 250@10A
- Switching Voltage (VDC): 30@10A
- Operating Temperature (C): -40 to 85
- Storage condition: -40 to 80
- Length (mm): 63
- Width (mm): 38
- Height (mm): 18
- Weight (gm): 26
Top Features:
- Optocoupler Isolation for anti-interference
- Wide voltage power supply (6 ~ 30V)
- Clear and powerful interface
- Emergency stop function and reverse polarity protection

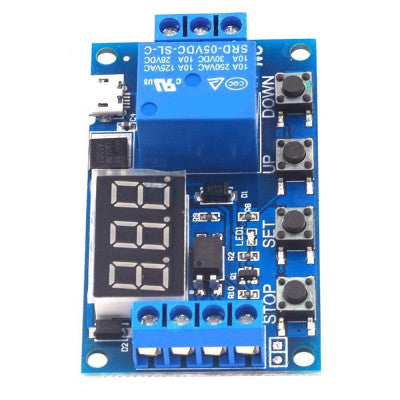

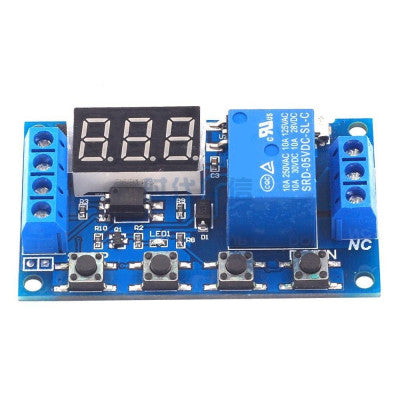

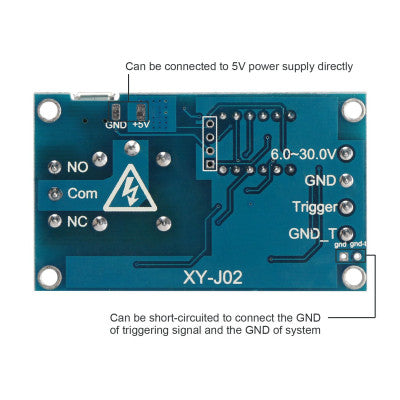

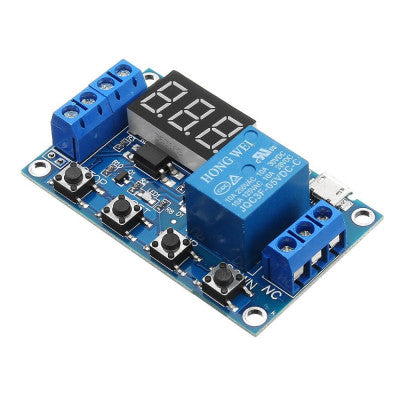

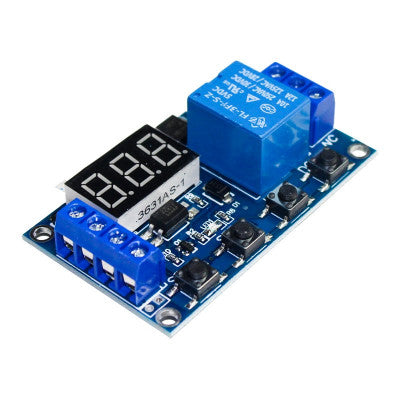

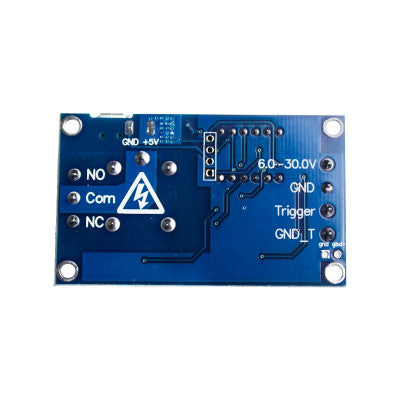

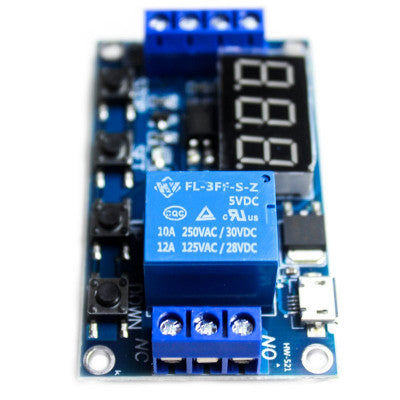

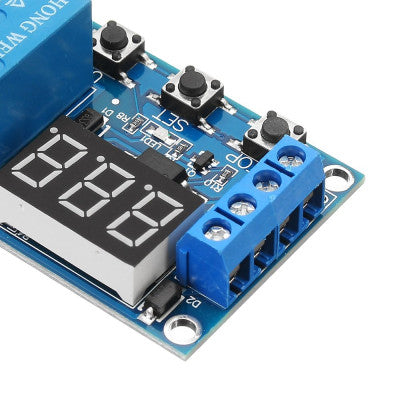

The 6-30V 1-Channel Delay Power Relay Module with Onboard Adjustable Timing Cycle Switches and Digital LED display is a versatile module suitable for various applications. It supports an operating voltage range of 6-30V and can control devices within DC 30V 5A or AC 220V 5A. The module offers multiple operation modes for flexible usage.

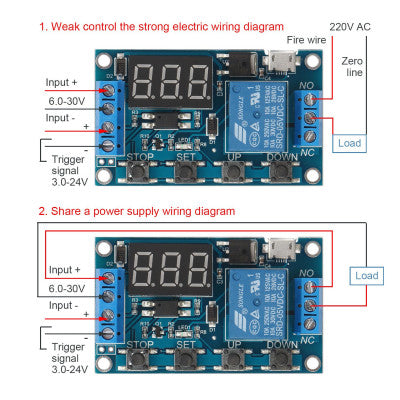

To choose the time interval, follow the parameter introduction guide provided. Setting the parameters is straightforward, ensuring efficient operation based on your requirements. The module also features a sleep mode for energy conservation.
The package includes 1 x 6-30V 1-Channel Power Relay Module with Adjustable Timing Cycle.
* Images are for illustration only; actual product may vary.
