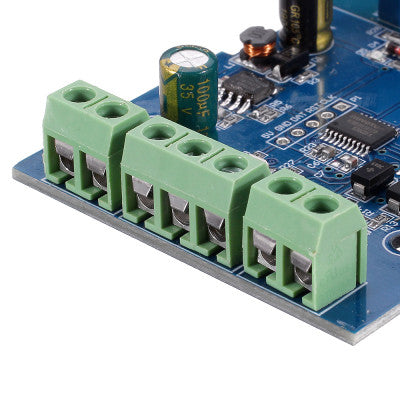

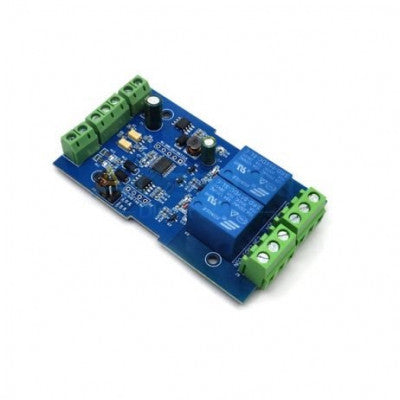

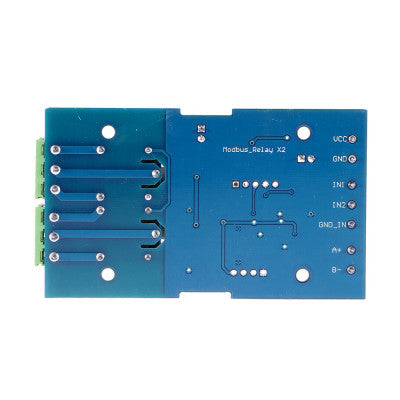

LC 2 Channel Modbus Relay Module
Equipped with mature and stable 8-bit MCU and RS485 level communication chip
- Communication Protocol: Support standard Modbus RTU protocol
- Communication Interface: Support RS485 / TTL UART interface
- Communication Baud Rate: 4800/9600/19200, default 9600bps, support power saving
- Photocoupler Input Signal Range: DC3.3-30V (This input cannot be used for relay control)
- Device Address: Range 1-255, default 255, support power-down save
- Onboard Relay: One 5V, 10A / 250V AC 10A / 30V DC relay
- Relay Durability: Continuously attract 100,000 times, with diode leakage protection, short response time
- Supply Voltage: DC7-24V, with input anti-reverse protection
Top Features:
- Mature and stable 8-bit MCU
- Supports standard Modbus RTU protocol
- RS485 / TTL UART interface
- 5V, 10A / 250V AC 10A / 30V DC relay
LC 2 channel Modbus relay module is designed for 1-way input signal detection and 2-way relay output. It can be used for digital detection or power control occasions.
Package includes: 1 x 7-24V Modbus RTU 2 Channel Relay Module RS485.
Images are for illustration only; actual product may vary.
