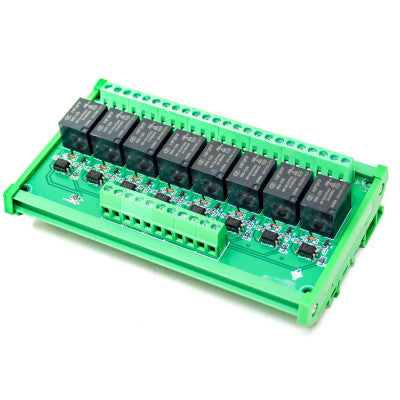

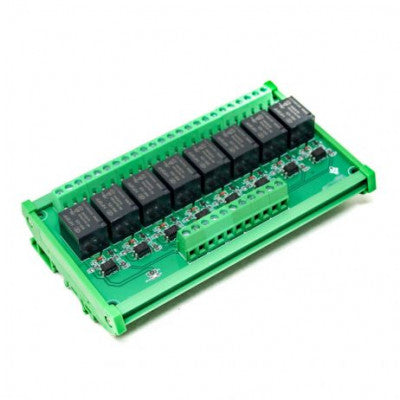

8 Channel 5V Relay Control Board Module
Compliant with safety standards, with optocoupler isolation and single relay.
- Trigger Voltage (VDC): 5V
- Switching Voltage (VAC): 250@30A
- Switching Voltage (VDC): 30@30A
- Package Includes: 1 x 5V 8 Channels Relay Module High and Low Triggering Optocoupler Isolation Relay Module PLC Signal Amplifier Board
Features:
- High impedance controller pin
- Pull-down circuit for malfunction avoidance
- One normally closed contact and one normally open contact
- Triode drive for increased relay coil efficiency
This 8 channel 5V relay control board module with optocoupler modules is compliant with international safety standards. The inputs are isolated to protect delicate control circuitry. It can control 220V AC loads and work with both DC and AC signals. The module includes a guide rail for easy adjustment to a superior location.
Note: On the high-level and low-level triggered mode, high-level trigger refers to the signal voltage between input and trigger, while low-level trigger refers to the signal voltage between the input terminal and Earth OV trigger.
Images are for illustration only; actual product may vary.
